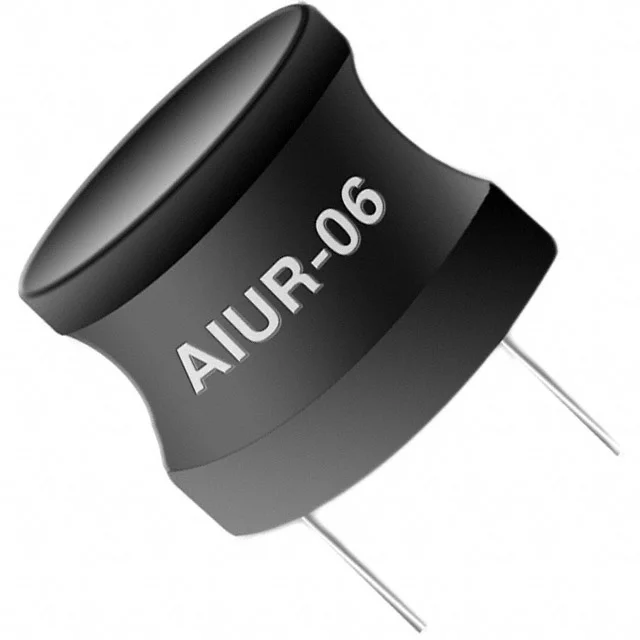

FIXED IND 3.9MH 310MA 5 OHM TH
| Inductance | 3.9 mH |
| Tolerance | ±10% |
| Current Rating | 310 mA |
| DC Resistance (DCR) | 5Ohm Max |
| saturationCurrent | 420mA |
| Operating Temperature | -25°C ~ 85°C |
| Dimensions | 0.500" Dia (12.70mm) |
| Case / Size | Radial, Vertical Cylinder |
| Supplier | Abracon |
| Description | FIXED IND 3.9MH 310MA 5 OHM TH |
| Series | AIUR-06 |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Unshielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | 1 kHz |
| mountingType | Through Hole |
| supplierDevicePackage | - |
| heightMax | 0.710" (18.03mm) |
| features | - |
