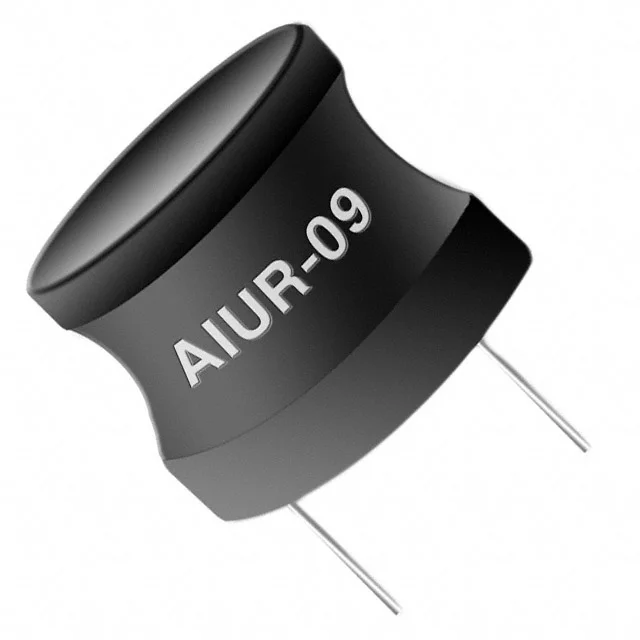

FIXED IND 27UH 2.2A 110 MOHM TH
| Inductance | 27 µH |
| Tolerance | ±20% |
| Current Rating | 2.2 A |
| DC Resistance (DCR) | 110mOhm Max |
| saturationCurrent | - |
| Operating Temperature | -55°C ~ 85°C |
| Dimensions | - |
| Case / Size | Through Hole |
| Supplier | Abracon |
| Description | FIXED IND 27UH 2.2A 110 MOHM TH |
| Series | AIUR-09 |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Unshielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | 2.52 MHz |
| mountingType | - |
| supplierDevicePackage | Radial, Vertical Cylinder |
| heightMax | 0.394" Dia (10.00mm) |
| features | 0.256" (6.50mm) |
