Description

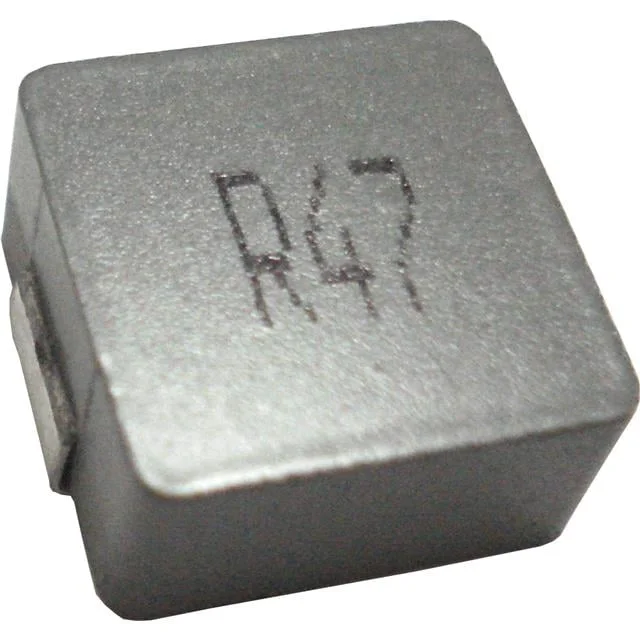

FIXED IND 470NH 16.5A 4.3 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for AMRU00060630R47MA1.
AMRU00060630R47MA1 has an inductance value of 470 nH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
AMRU00060630R47MA1 is rated for 16.5 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
AMRU00060630R47MA1 lists a DC resistance of 4.3mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
AMRU00060630R47MA1 uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from AMRU00060630R47MA1 to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 470 nH |
| Tolerance | ±20% |
| Current Rating | 16.5 A |
| DC Resistance (DCR) | 4.3mOhm Max |
| Saturation Current | 20A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.287" L x 0.268" W (7.30mm x 6.80mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Pulse Electronics |
| Description | FIXED IND 470NH 16.5A 4.3 MOHM |
| Series | AMRx |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Metal |
| Shielding | Shielded |
| Ratings | AEC-Q200 |
| Inductance Test Frequency | 100 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.118" (3.00mm) |
