Description

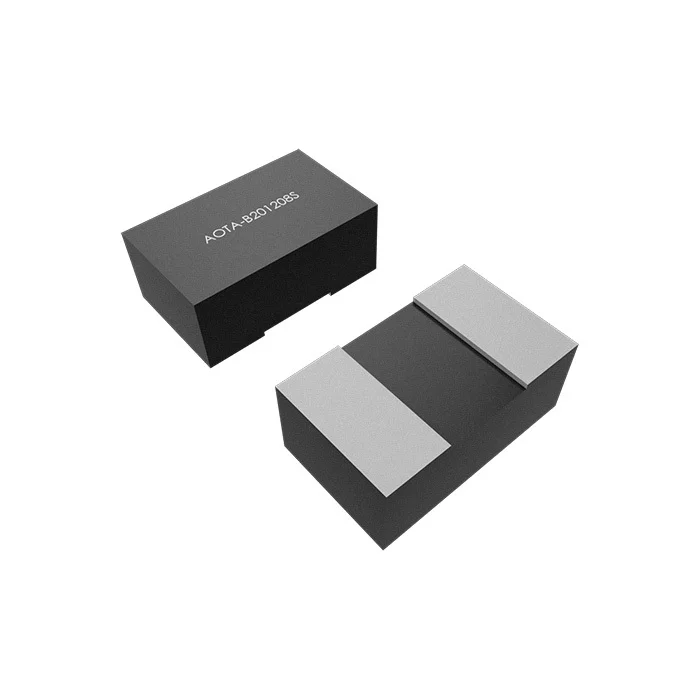

FIXED IND 110NH 5.6A 13 MOHM SMD
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for AOTA-B201208SR11MT.
AOTA-B201208SR11MT has an inductance value of 110 nH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
AOTA-B201208SR11MT is rated for 5.6 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
AOTA-B201208SR11MT lists a DC resistance of 13mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
AOTA-B201208SR11MT uses a package or case of Surface Mount. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from AOTA-B201208SR11MT to manufacturer, series, and broader datasheet collections.
Alternative Solutions
Compare possible alternatives with similar specifications. Verify every electrical and mechanical requirement before use.
Product Attributes
| Inductance | 110 nH |
| Tolerance | ±20% |
| Current Rating | 5.6 A |
| DC Resistance (DCR) | 13mOhm Max |
| Saturation Current | 10A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0805 |
| Case / Size | Surface Mount |
| Package / Case | Surface Mount |
| Supplier | Abracon |
| Description | FIXED IND 110NH 5.6A 13 MOHM SMD |
| Series | AOTA-B201208S |
| Product Status | Active |
| Type / Construction | Molded |
| Shielding | Shielded |
| Self Resonant Frequency | 185MHz |
| Inductance Test Frequency | 1 MHz |
| Supplier Device Package | 0805 (2012 Metric) |
| Height - Seated (Max) | 0.079" L x 0.047" W (2.00mm x 1.20mm) |
| Features | 0.031" (0.80mm) |
