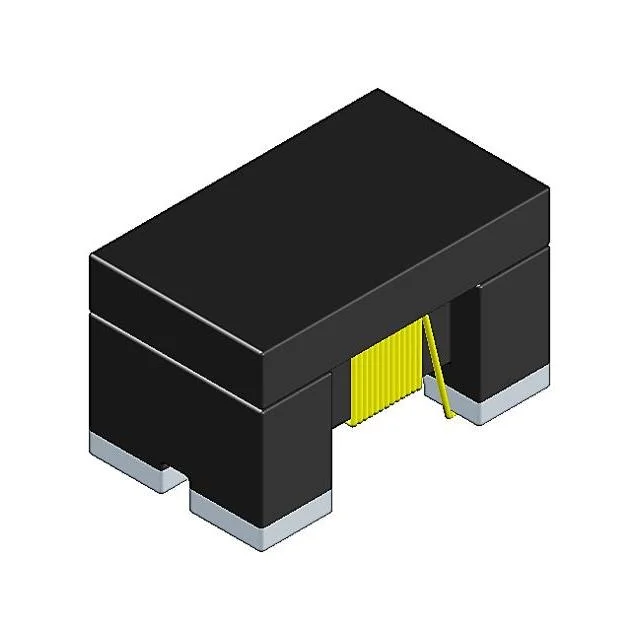

Description
FIXED IND 18UH 845MA 160 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for APO453235NV-180M.
APO453235NV-180M has an inductance value of 18 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
APO453235NV-180M is rated for 845 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
APO453235NV-180M lists a DC resistance of 160mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
APO453235NV-180M uses a package or case of 1812 (4532 Metric). Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from APO453235NV-180M to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 18 µH |
| Tolerance | ±20% |
| Current Rating | 845 mA |
| DC Resistance (DCR) | 160mOhm Max |
| Saturation Current | 800mA |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.177" L x 0.126" W (4.50mm x 3.20mm) |
| Case / Size | 1812 (4532 Metric) |
| Package / Case | 1812 (4532 Metric) |
| Supplier | TAI-TECH |
| Description | FIXED IND 18UH 845MA 160 MOHM |
| Series | APO453235NV |
| Product Status | Active |
| Type / Construction | Wirewound |
| Shielding | Unshielded |
| Self Resonant Frequency | 40MHz |
| Inductance Test Frequency | 1 MHz |
| Mounting Type | Surface Mount |
| Supplier Device Package | 1812 |
| Height - Seated (Max) | 0.146" (3.70mm) |
