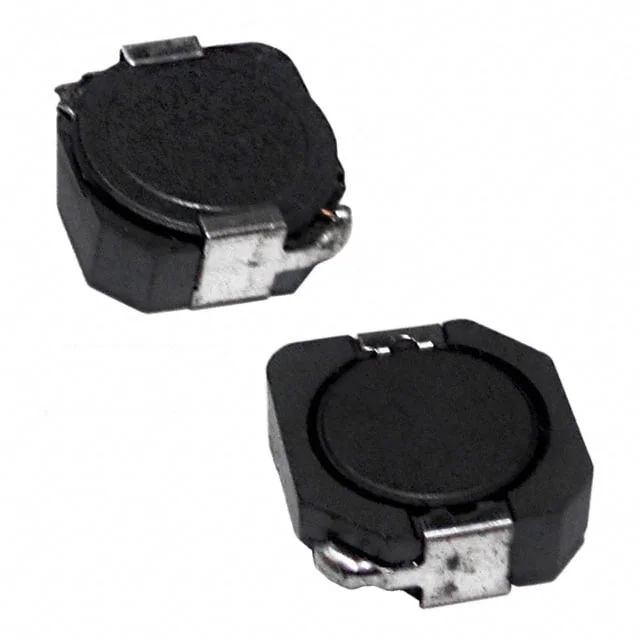

Description
FIXED IND 150UH 240MA 1.35 OHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for ASPI-0428S-151M-T.
ASPI-0428S-151M-T has an inductance value of 150 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
ASPI-0428S-151M-T is rated for 240 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
ASPI-0428S-151M-T lists a DC resistance of 1.35Ohm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
ASPI-0428S-151M-T uses a package or case of Surface Mount. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from ASPI-0428S-151M-T to manufacturer, series, and broader datasheet collections.
Alternative Solutions
Compare possible alternatives with similar specifications. Verify every electrical and mechanical requirement before use.
Product Attributes
| Inductance | 150 µH |
| Tolerance | ±20% |
| Current Rating | 240 mA |
| DC Resistance (DCR) | 1.35Ohm Max |
| Operating Temperature | -40°C ~ 85°C |
| Case / Size | Surface Mount |
| Package / Case | Surface Mount |
| Supplier | Abracon |
| Description | FIXED IND 150UH 240MA 1.35 OHM |
| Series | ASPI-0428S |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Shielded |
| Inductance Test Frequency | 100 kHz |
| Supplier Device Package | Nonstandard |
| Height - Seated (Max) | 0.185" L x 0.185" W (4.70mm x 4.70mm) |
| Features | 0.118" (3.00mm) |
