Inductor Datasheets
Browse and download PDF datasheets for inductors from leading manufacturers.
Product Attributes
| Product | Inductance | Current | DCR | Size | Package | Actions |
|---|---|---|---|---|---|---|
 ASPI-0428S-3R9M-T Abracon | 3.9 µH | 1.44 A | 64.8mOhm Max | - | Surface Mount | |
 ASPI-0428S-2R2M-T Abracon | 2.2 µH | 2.04 A | 31.3mOhm Max | 0.185" L x 0.185" W (4.70mm x 4.70mm) | Nonstandard | |
 ASPI-0428S-1R2M-T Abracon | 1.2 µH | 2.56 A | 23.6mOhm Max | 0.185" L x 0.185" W (4.70mm x 4.70mm) | Nonstandard | |
 ASPI-0428S-1R8M-T Abracon | 1.8 µH | 2.2 A | 27.5mOhm Max | 0.185" L x 0.185" W (4.70mm x 4.70mm) | Nonstandard | |
 ASPI-0428S-2R7M-T Abracon | 2.7 µH | 1.6 A | 43.3mOhm Max | 0.185" L x 0.185" W (4.70mm x 4.70mm) | Nonstandard | |
 ASPI-0428S-3R3M-T Abracon | 3.3 µH | 1.57 A | 49.2mOhm Max | 0.185" L x 0.185" W (4.70mm x 4.70mm) | Nonstandard | |
 ASPI-0428S-4R7M-T Abracon | 4.7 µH | 1.32 A | 72mOhm Max | 0.185" L x 0.185" W (4.70mm x 4.70mm) | Nonstandard | |
 ASPI-0428S-5R6M-T Abracon | 5.6 µH | 1.17 A | 100.9mOhm Max | 0.185" L x 0.185" W (4.70mm x 4.70mm) | Nonstandard | |

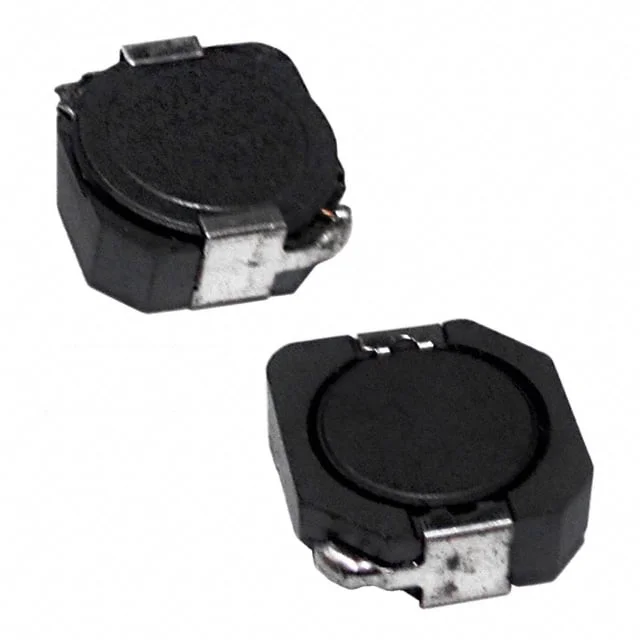

 ASPI-0428S-6R8M-T Abracon | 6.8 µH | 1.12 A | 108.9mOhm Max | 0.185" L x 0.185" W (4.70mm x 4.70mm) | Nonstandard | |
 ASPI-0428S-8R2M-T Abracon | 8.2 µH | 1.04 A | 117.5mOhm Max | 0.185" L x 0.185" W (4.70mm x 4.70mm) | Nonstandard | |
 ASPI-0428S-100M-T Abracon | 10 µH | 1 A | 128.3mOhm Max | - | Surface Mount | |
 ASPI-0428S-120M-T Abracon | 12 µH | 840 mA | 131.6mOhm Max | - | Surface Mount | |
 ASPI-0428S-330M-T Abracon | 33 µH | 560 mA | 378mOhm Max | - | Surface Mount | |
 ASPI-0428S-1R8N-T Abracon | 1.8 µH | 2.2 A | 27.5mOhm Max | - | Surface Mount | |
 ASPI-0428S-2R2N-T Abracon | 2.2 µH | 2.04 A | 31.3mOhm Max | - | Surface Mount | |
 ASPI-0428S-3R9N-T Abracon | 3.9 µH | 1.44 A | 64.8mOhm Max | - | Surface Mount | |
 ASPI-0428S-8R2N-T Abracon | 8.2 µH | 1.04 A | 117.5mOhm Max | - | Surface Mount | |
 ASPI-0428S-4R7N-T Abracon | 4.7 µH | 1.32 A | 72mOhm Max | - | Surface Mount | |
 ASPI-0428S-3R3N-T Abracon | 3.3 µH | 1.57 A | 49.2mOhm Max | - | Surface Mount | |
 ASPI-0428S-6R8N-T Abracon | 6.8 µH | 1.12 A | 108.9mOhm Max | - | Surface Mount | |
 ASPI-0428S-1R2N-T Abracon | 1.2 µH | 2.56 A | 23.6mOhm Max | - | Surface Mount | |
 ASPI-0428S-2R7N-T Abracon | 2.7 µH | 1.6 A | 43.3mOhm Max | - | Surface Mount | |
 ASPI-0428S-5R6N-T Abracon | 5.6 µH | 1.17 A | 100.9mOhm Max | - | Surface Mount | |
 ASPI-0428S-3R0N-T Abracon | 3 µH | 1.55 A | 48mOhm Max | - | Surface Mount | |
 ASPI-0428S-430M-T Abracon | 43 µH | 510 mA | 377mOhm Max | - | Surface Mount |
