Description

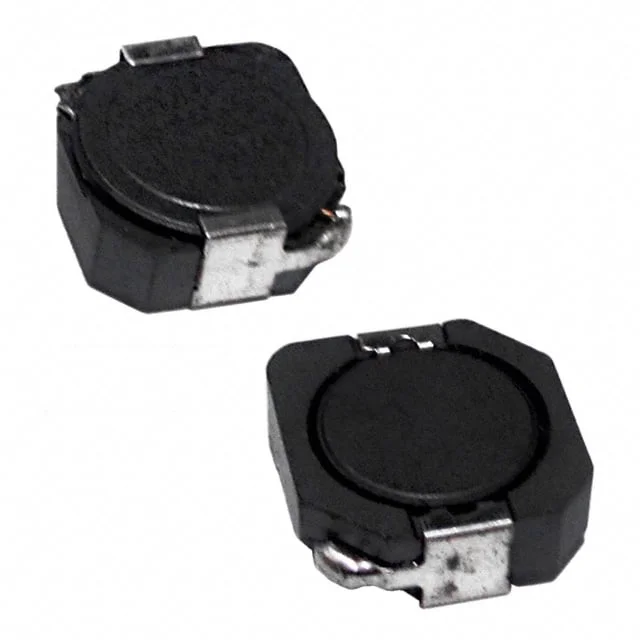

FIXED IND 3UH 1.55A 48 MOHM SMD
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for ASPI-0428S-3R0N-T.
ASPI-0428S-3R0N-T has an inductance value of 3 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
ASPI-0428S-3R0N-T is rated for 1.55 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
ASPI-0428S-3R0N-T lists a DC resistance of 48mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
ASPI-0428S-3R0N-T uses a package or case of Surface Mount. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from ASPI-0428S-3R0N-T to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 3 µH |
| Tolerance | ±30% |
| Current Rating | 1.55 A |
| DC Resistance (DCR) | 48mOhm Max |
| Operating Temperature | -40°C ~ 125°C |
| Case / Size | Surface Mount |
| Package / Case | Surface Mount |
| Supplier | Abracon |
| Description | FIXED IND 3UH 1.55A 48 MOHM SMD |
| Series | ASPI-0428S |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Shielded |
| Inductance Test Frequency | 100 kHz |
| Supplier Device Package | Nonstandard |
| Height - Seated (Max) | 0.185" L x 0.185" W (4.70mm x 4.70mm) |
| Features | 0.118" (3.00mm) |
