Description

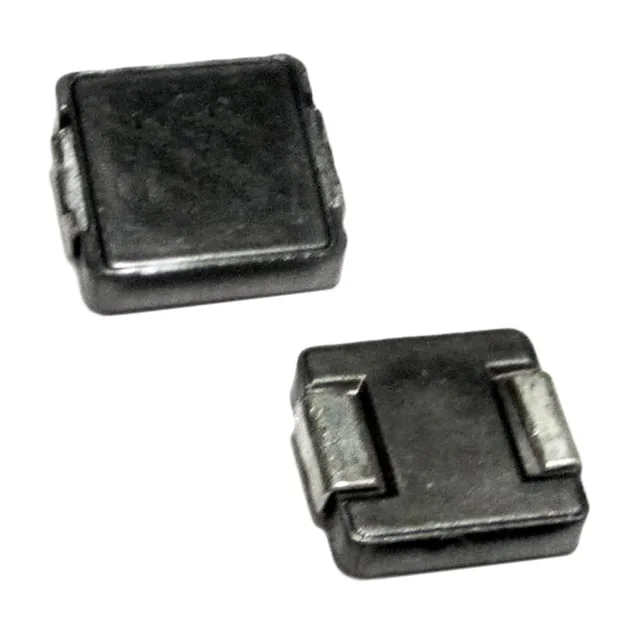

FIXED IND 100NH 30A 1.7 MOHM SMD
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for ASPI-7318-R10M-T.
ASPI-7318-R10M-T has an inductance value of 100 nH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
ASPI-7318-R10M-T is rated for 30 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
ASPI-7318-R10M-T lists a DC resistance of 1.7mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
ASPI-7318-R10M-T uses a package or case of Surface Mount. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from ASPI-7318-R10M-T to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 100 nH |
| Tolerance | ±20% |
| Current Rating | 30 A |
| DC Resistance (DCR) | 1.7mOhm Max |
| Saturation Current | 50A |
| Operating Temperature | -55°C ~ 125°C |
| Case / Size | Surface Mount |
| Package / Case | Surface Mount |
| Supplier | Abracon |
| Description | FIXED IND 100NH 30A 1.7 MOHM SMD |
| Series | ASPI-7318 |
| Product Status | Obsolete |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Shielded |
| Inductance Test Frequency | 200 kHz |
| Supplier Device Package | Nonstandard |
| Height - Seated (Max) | 0.287" L x 0.268" W (7.30mm x 6.80mm) |
| Features | 0.118" (3.00mm) |
