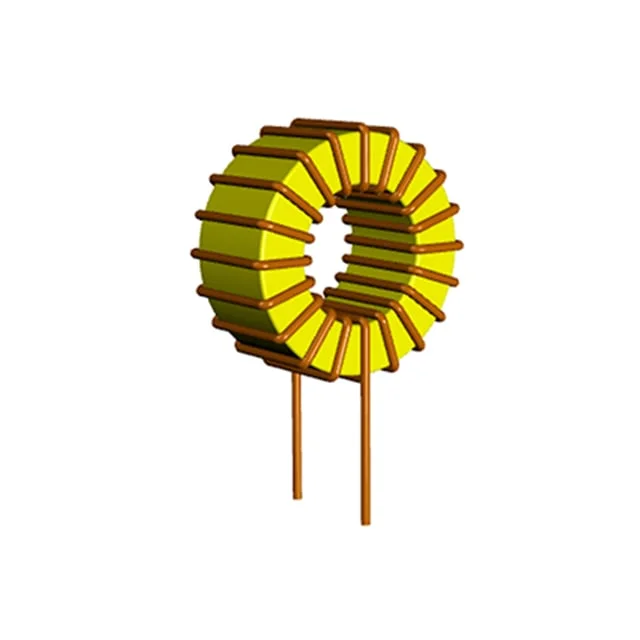

ATCA-04-321M-V
Abracon
Description
FIXED IND 320UH 2A 131 MOHM TH
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for ATCA-04-321M-V.
ATCA-04-321M-V has an inductance value of 320 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
ATCA-04-321M-V is rated for 2 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
ATCA-04-321M-V lists a DC resistance of 131mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
ATCA-04-321M-V uses a package or case of Through Hole. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from ATCA-04-321M-V to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 320 µH |
| Tolerance | ±20% |
| Current Rating | 2 A |
| DC Resistance (DCR) | 131mOhm Max |
| Operating Temperature | -40°C ~ 105°C |
| Case / Size | Through Hole |
| Package / Case | Through Hole |
| Supplier | Abracon |
| Description | FIXED IND 320UH 2A 131 MOHM TH |
| Series | ATCA |
| Product Status | Active |
| Type / Construction | Toroidal |
| Core Material | Iron Powder |
| Shielding | Unshielded |
| Inductance Test Frequency | 1 kHz |
| Supplier Device Package | Radial, Vertical (Open) |
| Height - Seated (Max) | 1.063" L x 0.531" W (27.00mm x 13.50mm) |
