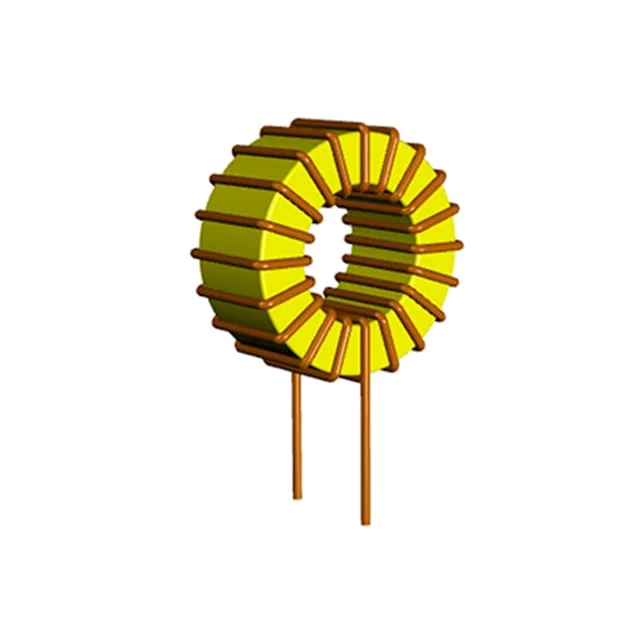

ATCA-04-431M-V
Abracon
Description
FIXED IND 430UH 2A 150 MOHM TH
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for ATCA-04-431M-V.
ATCA-04-431M-V has an inductance value of 430 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
ATCA-04-431M-V is rated for 2 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
ATCA-04-431M-V lists a DC resistance of 150mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
ATCA-04-431M-V uses a package or case of Through Hole. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from ATCA-04-431M-V to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 430 µH |
| Tolerance | ±20% |
| Current Rating | 2 A |
| DC Resistance (DCR) | 150mOhm Max |
| Operating Temperature | -40°C ~ 105°C |
| Case / Size | Through Hole |
| Package / Case | Through Hole |
| Supplier | Abracon |
| Description | FIXED IND 430UH 2A 150 MOHM TH |
| Series | ATCA |
| Product Status | Active |
| Type / Construction | Toroidal |
| Core Material | Iron Powder |
| Shielding | Unshielded |
| Inductance Test Frequency | 1 kHz |
| Supplier Device Package | Radial, Vertical (Open) |
| Height - Seated (Max) | 1.063" L x 0.531" W (27.00mm x 13.50mm) |
