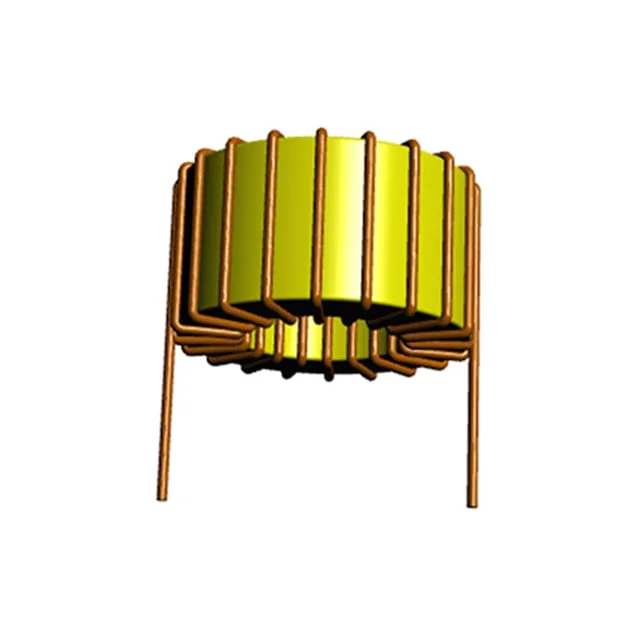

ATCA-05-451M-H
Abracon
Description
FIXED IND 450UH 2A 174 MOHM TH
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for ATCA-05-451M-H.
ATCA-05-451M-H has an inductance value of 450 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
ATCA-05-451M-H is rated for 2 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
ATCA-05-451M-H lists a DC resistance of 174mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
ATCA-05-451M-H uses a package or case of Radial, Horizontal (Open). Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from ATCA-05-451M-H to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 450 µH |
| Tolerance | ±20% |
| Current Rating | 2 A |
| DC Resistance (DCR) | 174mOhm Max |
| Operating Temperature | -40°C ~ 105°C |
| Dimensions | 0.669" (17.00mm) |
| Case / Size | Radial, Horizontal (Open) |
| Package / Case | Radial, Horizontal (Open) |
| Supplier | Abracon |
| Description | FIXED IND 450UH 2A 174 MOHM TH |
| Series | ATCA |
| Product Status | Active |
| Type / Construction | Toroidal |
| Core Material | Iron Powder |
| Shielding | Unshielded |
| Inductance Test Frequency | 1 kHz |
| Mounting Type | Through Hole |
| Supplier Device Package | 1.181" Dia (30.00mm) |
