Description

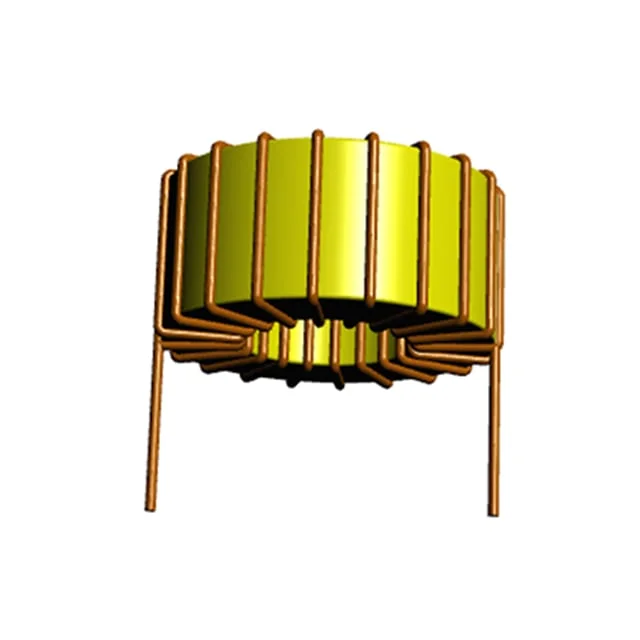

FIXED IND 1.3MH 1A 585 MOHM TH
Specifications
Inductance
1.3 mH
Current Rating
1 A
DC Resistance (DCR)
585mOhm Max
Dimensions
0.630" (16.00mm)
Product Attributes
Manufacturer Verified
Last verified: 6/22/2026| Inductance | 1.3 mH |
| Tolerance | ±20% |
| Current Rating | 1 A |
| DC Resistance (DCR) | 585mOhm Max |
| saturationCurrent | - |
| Operating Temperature | -40°C ~ 105°C |
| Dimensions | 0.630" (16.00mm) |
| Case / Size | Radial, Horizontal (Open) |
| Supplier | Abracon |
| Description | FIXED IND 1.3MH 1A 585 MOHM TH |
| Series | ATCA |
| productStatus | Active |
| typeConstruction | Toroidal |
| coreMaterial | Iron Powder |
| shielding | Unshielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | 1 kHz |
| mountingType | Through Hole |
| supplierDevicePackage | 1.260" Dia (32.00mm) |
| heightMax | - |
| features | - |
