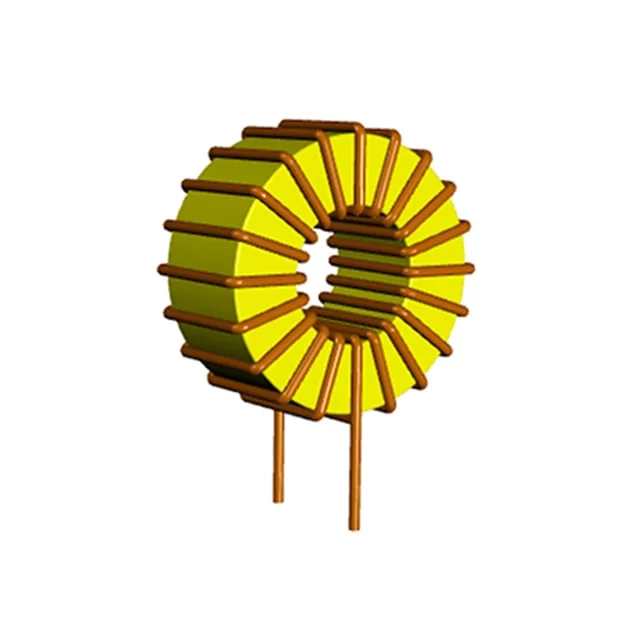

FIXED IND 75UH 10A 14 MOHM TH
| Inductance | 75 µH |
| Tolerance | ±20% |
| Current Rating | 10 A |
| DC Resistance (DCR) | 14mOhm Max |
| saturationCurrent | - |
| Operating Temperature | -40°C ~ 105°C |
| Dimensions | - |
| Case / Size | Radial, Vertical (Open) |
| Supplier | Abracon |
| Description | FIXED IND 75UH 10A 14 MOHM TH |
| Series | ATCA |
| productStatus | Active |
| typeConstruction | Toroidal |
| coreMaterial | Iron Powder |
| shielding | Unshielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | 1 kHz |
| mountingType | Through Hole |
| supplierDevicePackage | 1.673" L x 0.846" W (42.50mm x 21.50mm) |
| heightMax | - |
| features | - |
