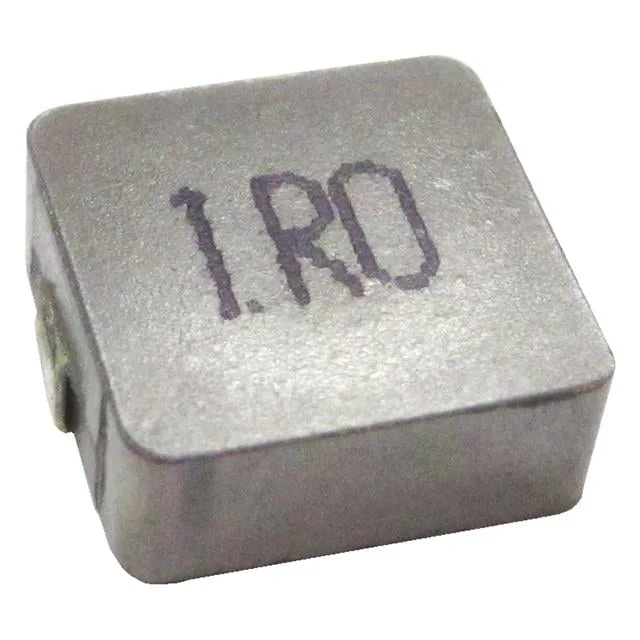

FIXED IND 680NH 6A 23 MOHM SMD
| Inductance | 680 nH |
| Tolerance | ±20% |
| Current Rating | 6 A |
| DC Resistance (DCR) | 23mOhm Max |
| saturationCurrent | 10A |
| Operating Temperature | -55°C ~ 125°C |
| Dimensions | 0.224" L x 0.213" W (5.70mm x 5.40mm) |
| Case / Size | Nonstandard |
| Supplier | Pulse Electronics |
| Description | FIXED IND 680NH 6A 23 MOHM SMD |
| Series | BMRX |
| productStatus | Active |
| typeConstruction | Molded |
| coreMaterial | - |
| shielding | Shielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.059" (1.50mm) |
| features | - |
