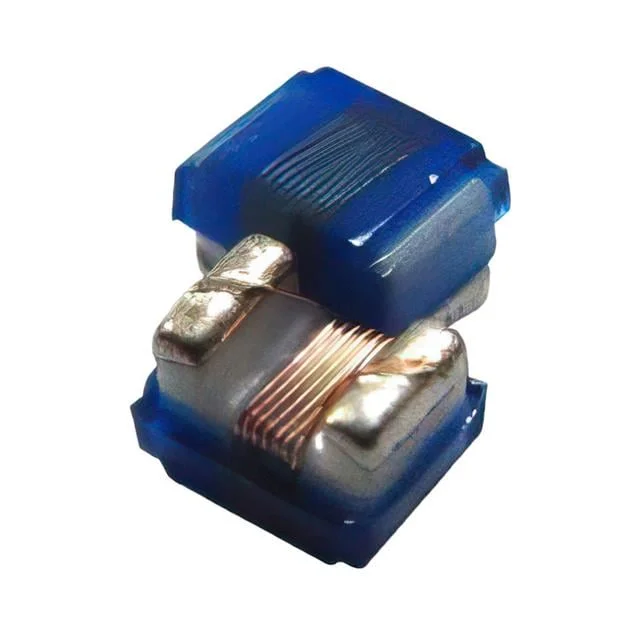

FIXED IND 5.6UH 400MA 2.6 OHM
| Inductance | 5.6 µH |
| Tolerance | ±10% |
| Current Rating | 400 mA |
| DC Resistance (DCR) | 2.6Ohm Max |
| saturationCurrent | - |
| Operating Temperature | -25°C ~ 105°C |
| Dimensions | 0.063" L x 0.043" W (1.60mm x 1.10mm) |
| Case / Size | 0603 (1608 Metric) |
| Supplier | Pulse Electronics |
| Description | FIXED IND 5.6UH 400MA 2.6 OHM |
| Series | BWLS |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Unshielded |
| qFactor | 18 @ 7.9MHz |
| selfResonantFreq | 65MHz |
| ratings | - |
| testFrequency | 7.9 MHz |
| mountingType | Surface Mount |
| supplierDevicePackage | 0603 |
| heightMax | 0.043" (1.10mm) |
| features | - |
