Description

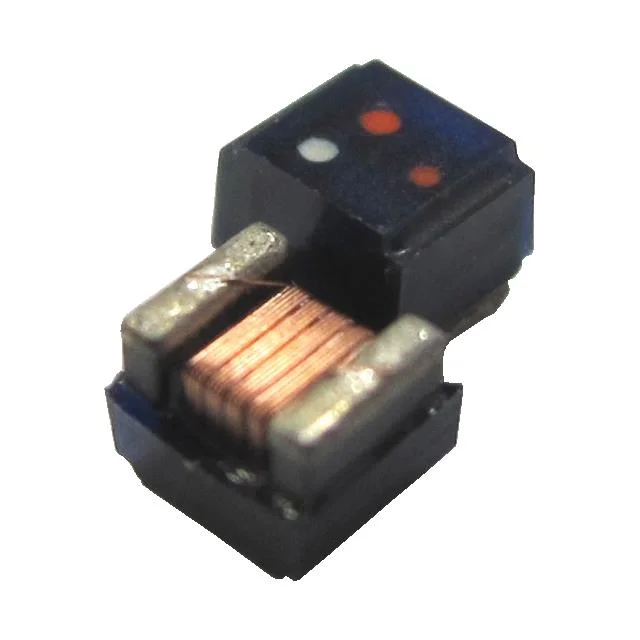

FIXED IND 680NH 800MA 850 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for BWNL00292522R68K00.
BWNL00292522R68K00 has an inductance value of 680 nH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
BWNL00292522R68K00 is rated for 800 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
BWNL00292522R68K00 lists a DC resistance of 850mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
BWNL00292522R68K00 uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from BWNL00292522R68K00 to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 680 nH |
| Tolerance | ±10% |
| Current Rating | 800 mA |
| DC Resistance (DCR) | 850mOhm Max |
| Operating Temperature | -25°C ~ 105°C |
| Dimensions | 0.115" L x 0.098" W (2.92mm x 2.50mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Pulse Electronics |
| Description | FIXED IND 680NH 800MA 850 MOHM |
| Series | BWNL |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Unshielded |
| Q @ Frequency | 30 @ 25.2MHz |
| Self Resonant Frequency | 300MHz |
| Inductance Test Frequency | 25.2 MHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.087" (2.20mm) |
