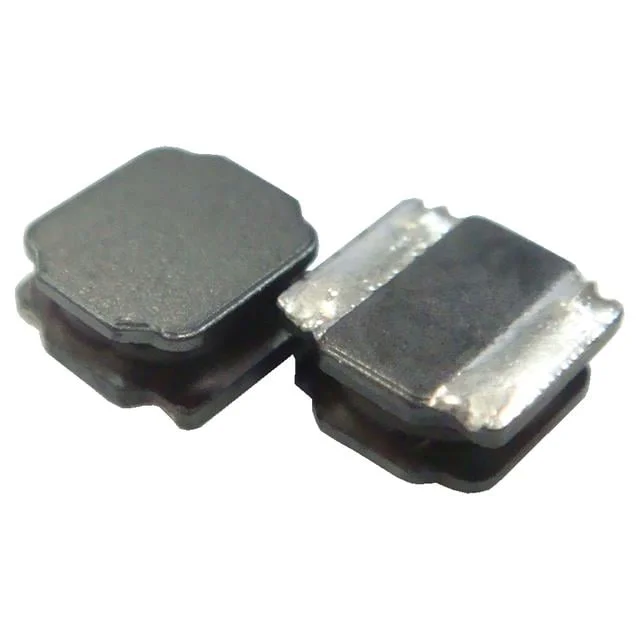

FIXED IND 1.5UH 6.93A 9.5 MOHM
| Inductance | 1.5 µH |
| Tolerance | ±30% |
| Current Rating | 6.93 A |
| DC Resistance (DCR) | 9.5mOhm |
| saturationCurrent | 9A |
| Operating Temperature | -55°C ~ 125°C |
| Dimensions | 0.315" L x 0.315" W (8.00mm x 8.00mm) |
| Case / Size | 3131 (8080 Metric) |
| Supplier | Pulse Electronics |
| Description | FIXED IND 1.5UH 6.93A 9.5 MOHM |
| Series | BWVS |
| productStatus | Active |
| typeConstruction | - |
| coreMaterial | Ferrite |
| shielding | Shielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | 3131 |
| heightMax | 0.165" (4.20mm) |
| features | - |
