Description

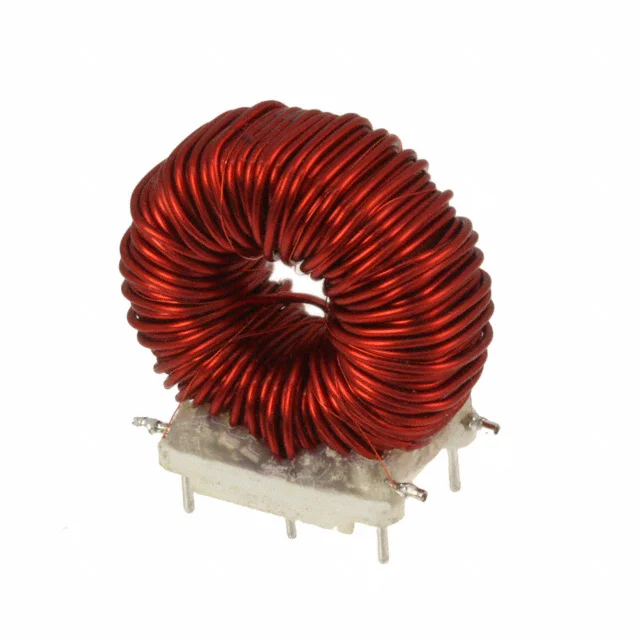

FIXED IND 200UH 7A 164 MOHM TH
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for CTX22-16885.
CTX22-16885 has an inductance value of 200 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
CTX22-16885 is rated for 7 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
CTX22-16885 lists a DC resistance of 164mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
CTX22-16885 uses a package or case of Radial, Vertical, 6 Leads (Open). Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from CTX22-16885 to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 200 µH |
| Current Rating | 7 A |
| DC Resistance (DCR) | 164mOhm Max |
| Operating Temperature | -20°C ~ 105°C |
| Dimensions | 1.394" L x 0.866" W (35.40mm x 22.00mm) |
| Case / Size | Radial, Vertical, 6 Leads (Open) |
| Package / Case | Radial, Vertical, 6 Leads (Open) |
| Supplier | WEC,Eaton - Electronics Division |
| Description | FIXED IND 200UH 7A 164 MOHM TH |
| Series | PFC |
| Product Status | Active |
| Type / Construction | Toroidal |
| Core Material | Iron Powder |
| Shielding | Unshielded |
| Inductance Test Frequency | 100 kHz |
| Mounting Type | Through Hole |
| Height - Seated (Max) | 1.850" (47.00mm) |
