Description

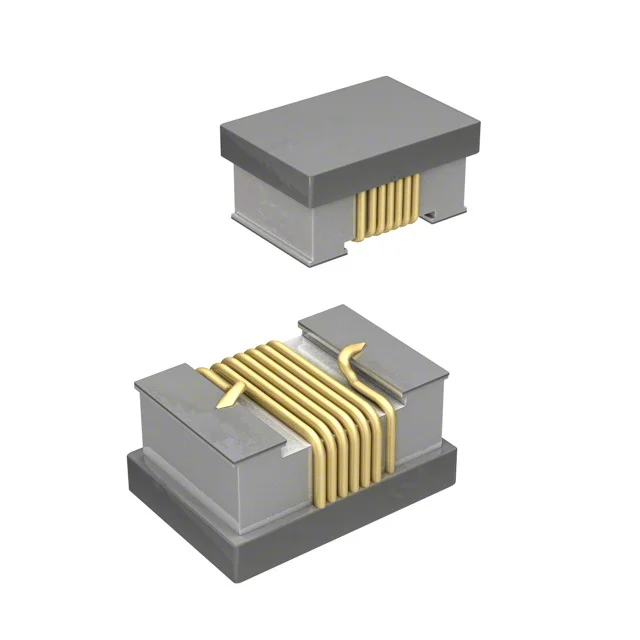

FIXED IND 1NH 600MA SMD
Specifications
Inductance
1 nH
Current Rating
600 mA
Dimensions
0.083" L x 0.059" W (2.10mm x 1.50mm)
Parameter Guide
Understand the key electrical and mechanical specifications for CW201212-1R0G.
Inductance
1 nH
CW201212-1R0G has an inductance value of 1 nH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
Current Rating
600 mA
CW201212-1R0G is rated for 600 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
Package / Case
0805 (2012 Metric)
CW201212-1R0G uses a package or case of 0805 (2012 Metric). Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from CW201212-1R0G to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 1 nH |
| Tolerance | ±2% |
| Current Rating | 600 mA |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.083" L x 0.059" W (2.10mm x 1.50mm) |
| Case / Size | 0805 (2012 Metric) |
| Package / Case | 0805 (2012 Metric) |
| Supplier | Bourns Inc. |
| Description | FIXED IND 1NH 600MA SMD |
| Series | CW201212 |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ceramic |
| Shielding | Unshielded |
| Inductance Test Frequency | 250 MHz |
| Mounting Type | Surface Mount |
| Supplier Device Package | 0805 (2012 Metric) |
| Height - Seated (Max) | 0.059" (1.50mm) |
