Series: CW201212
Browse series tables and compare the available specifications.
Product Attributes
| Product | Inductance | Current | DCR | Size | Package | Actions |
|---|---|---|---|---|---|---|
 CW201212-78NJ Bourns Inc. | 78 nH | - | - | 0.083" L x 0.059" W (2.10mm x 1.50mm) | 0805 (2012 Metric) | |
 CW201212-2N7J Bourns Inc. | 2.7 nH | 600 mA | 80mOhm | 0.083" L x 0.059" W (2.10mm x 1.50mm) | 0805 (2012 Metric) | |
 CW201212-R75J Bourns Inc. | 750 nH | - | - | 0.083" L x 0.059" W (2.10mm x 1.50mm) | 0805 (2012 Metric) | |
 CW201212-3N9J Bourns Inc. | 3.9 nH | 600 mA | 60mOhm | 0.083" L x 0.059" W (2.10mm x 1.50mm) | 0805 (2012 Metric) | |
 CW201212-1R0G Bourns Inc. | 1 nH | 600 mA | - | 0.083" L x 0.059" W (2.10mm x 1.50mm) | 0805 (2012 Metric) | |
 CW201212-22NG Bourns Inc. | 22 nH | 600 mA | 100mOhm | 0.083" L x 0.059" W (2.10mm x 1.50mm) | 0805 (2012 Metric) | |
 CW201212-39NG Bourns Inc. | 39 nH | 500 mA | 180mOhm | 0.083" L x 0.059" W (2.10mm x 1.50mm) | 0805 (2012 Metric) | |
 CW201212-R12G Bourns Inc. | 120 nH | 400 mA | 480mOhm | 0.083" L x 0.059" W (2.10mm x 1.50mm) | 0805 (2012 Metric) | |
 CW201212-R15G Bourns Inc. | 150 nH | 400 mA | 560mOhm Max | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0805 (2012 Metric) | |
 CW201212-R22G Bourns Inc. | 220 nH | 300 mA | 1.1Ohm | 0.083" L x 0.059" W (2.10mm x 1.50mm) | 0805 (2012 Metric) | |
 CW201212-R47J Bourns Inc. | 470 nH | 250 mA | 1.72Ohm | 0.083" L x 0.059" W (2.10mm x 1.50mm) | 0805 (2012 Metric) | |
 CW201212-22NJ Bourns Inc. | 22 nH | 600 mA | 100mOhm | 0.083" L x 0.059" W (2.10mm x 1.50mm) | 0805 (2012 Metric) | |
 CW201212-47NJ Bourns Inc. | 47 nH | 500 mA | 150mOhm | 0.083" L x 0.059" W (2.10mm x 1.50mm) | 0805 (2012 Metric) | |

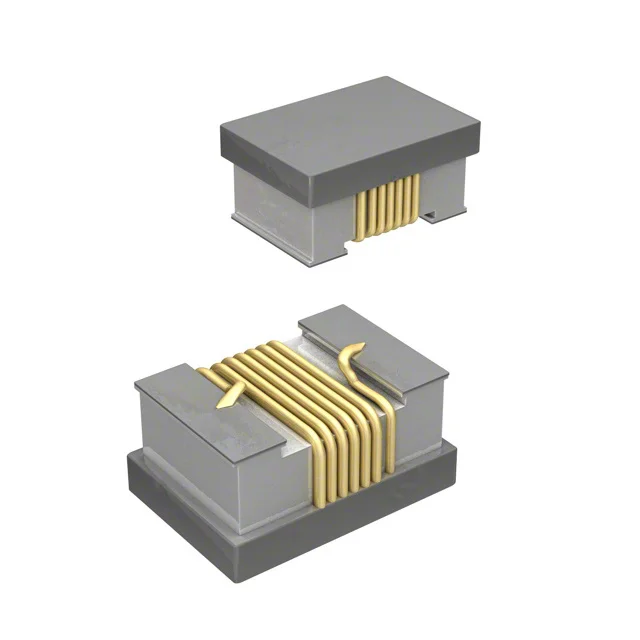

 CW201212-R22J Bourns Inc. | 220 nH | 400 mA | 1Ohm | 0.083" L x 0.059" W (2.10mm x 1.50mm) | 0805 (2012 Metric) | |
 CW201212-R12J Bourns Inc. | 120 nH | 400 mA | 480mOhm | 0.083" L x 0.059" W (2.10mm x 1.50mm) | 0805 (2012 Metric) | |
 CW201212-18NJ Bourns Inc. | 18 nH | 600 mA | 80mOhm | 0.083" L x 0.059" W (2.10mm x 1.50mm) | 0805 (2012 Metric) | |
 CW201212-82NJ Bourns Inc. | 82 nH | 500 mA | 320mOhm | 0.083" L x 0.059" W (2.10mm x 1.50mm) | 0805 (2012 Metric) | |
 CW201212-39NJ Bourns Inc. | 39 nH | 500 mA | 180mOhm | 0.083" L x 0.059" W (2.10mm x 1.50mm) | 0805 (2012 Metric) | |
 CW201212-R33J Bourns Inc. | 330 nH | 200 mA | 1.65Ohm | 0.083" L x 0.059" W (2.10mm x 1.50mm) | 0805 (2012 Metric) | |
 CW201212-2N2J Bourns Inc. | 2.2 nH | 600 mA | 60mOhm | 0.083" L x 0.059" W (2.10mm x 1.50mm) | 0805 (2012 Metric) | |
 CW201212-6N8J Bourns Inc. | 6.8 nH | 600 mA | 60mOhm | 0.083" L x 0.059" W (2.10mm x 1.50mm) | 0805 (2012 Metric) | |
 CW201212-15NJ Bourns Inc. | 15 nH | 600 mA | 80mOhm | 0.083" L x 0.059" W (2.10mm x 1.50mm) | 0805 (2012 Metric) | |
 CW201212-R39J Bourns Inc. | 390 nH | 170 mA | 2.2Ohm | 0.083" L x 0.059" W (2.10mm x 1.50mm) | 0805 (2012 Metric) | |
 CW201212-R18J Bourns Inc. | 180 nH | 350 mA | 850mOhm | 0.083" L x 0.059" W (2.10mm x 1.50mm) | 0805 (2012 Metric) | |
 CW201212-R15J Bourns Inc. | 150 nH | 400 mA | 670mOhm | 0.083" L x 0.059" W (2.10mm x 1.50mm) | 0805 (2012 Metric) |
