Description

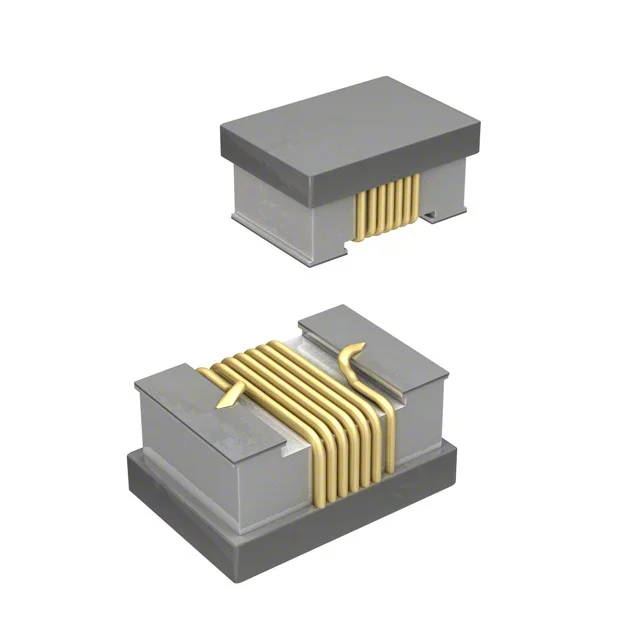

FIXED IND 3.9NH 600MA 60 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for CW201212-3N9J.
CW201212-3N9J has an inductance value of 3.9 nH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
CW201212-3N9J is rated for 600 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
CW201212-3N9J lists a DC resistance of 60mOhm. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
CW201212-3N9J uses a package or case of 0805 (2012 Metric). Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from CW201212-3N9J to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 3.9 nH |
| Tolerance | ±5% |
| Current Rating | 600 mA |
| DC Resistance (DCR) | 60mOhm |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.083" L x 0.059" W (2.10mm x 1.50mm) |
| Case / Size | 0805 (2012 Metric) |
| Package / Case | 0805 (2012 Metric) |
| Supplier | Bourns Inc. |
| Description | FIXED IND 3.9NH 600MA 60 MOHM |
| Series | CW201212 |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ceramic |
| Shielding | Unshielded |
| Q @ Frequency | 60 @ 1GHz |
| Self Resonant Frequency | 6GHz |
| Inductance Test Frequency | 250 MHz |
| Mounting Type | Surface Mount |
| Supplier Device Package | 0805 (2012 Metric) |
| Height - Seated (Max) | 0.059" (1.50mm) |
