Description

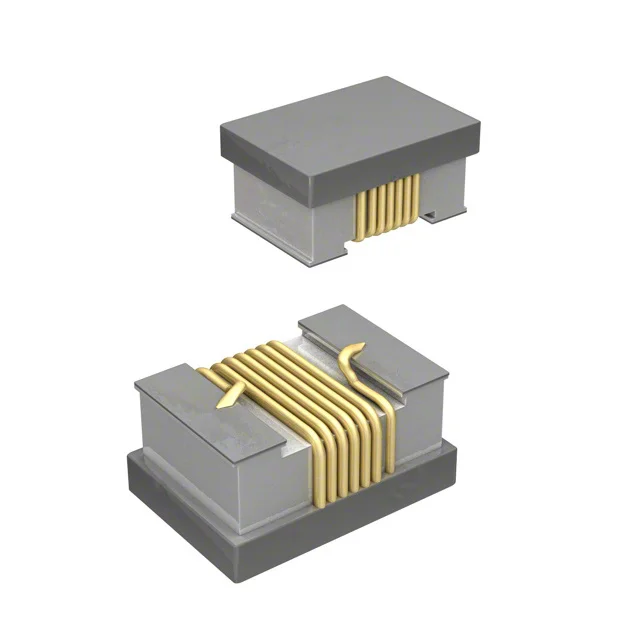

FIXED IND 100NH 400MA 430 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for CW201212-R10J.
CW201212-R10J has an inductance value of 100 nH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
CW201212-R10J is rated for 400 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
CW201212-R10J lists a DC resistance of 430mOhm. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
CW201212-R10J uses a package or case of 0805 (2012 Metric). Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from CW201212-R10J to manufacturer, series, and broader datasheet collections.
Alternative Solutions
Compare possible alternatives with similar specifications. Verify every electrical and mechanical requirement before use.
Product Attributes
| Inductance | 100 nH |
| Tolerance | ±5% |
| Current Rating | 400 mA |
| DC Resistance (DCR) | 430mOhm |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.083" L x 0.059" W (2.10mm x 1.50mm) |
| Case / Size | 0805 (2012 Metric) |
| Package / Case | 0805 (2012 Metric) |
| Supplier | Bourns Inc. |
| Description | FIXED IND 100NH 400MA 430 MOHM |
| Series | CW201212 |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ceramic |
| Shielding | Unshielded |
| Q @ Frequency | 60 @ 500MHz |
| Self Resonant Frequency | 1.2GHz |
| Inductance Test Frequency | 150 MHz |
| Mounting Type | Surface Mount |
| Supplier Device Package | 0805 (2012 Metric) |
| Height - Seated (Max) | 0.059" (1.50mm) |
