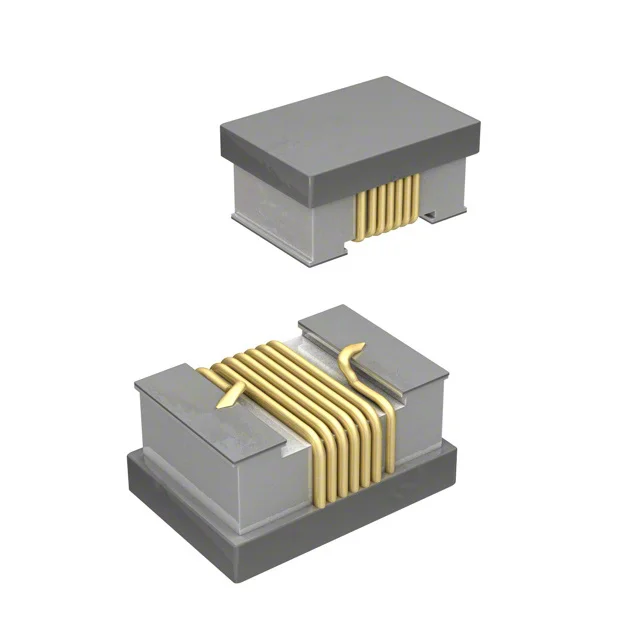

Description
FIXED IND 150NH 400MA 560 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for CW201212-R15G.
CW201212-R15G has an inductance value of 150 nH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
CW201212-R15G is rated for 400 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
CW201212-R15G lists a DC resistance of 560mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
CW201212-R15G uses a package or case of 0805 (2012 Metric). Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from CW201212-R15G to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 150 nH |
| Tolerance | ±2% |
| Current Rating | 400 mA |
| DC Resistance (DCR) | 560mOhm Max |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.079" L x 0.049" W (2.00mm x 1.25mm) |
| Case / Size | 0805 (2012 Metric) |
| Package / Case | 0805 (2012 Metric) |
| Supplier | Bourns Inc. |
| Description | FIXED IND 150NH 400MA 560 MOHM |
| Series | CW201212 |
| Product Status | Active |
| Type / Construction | Wirewound |
| Core Material | Ceramic |
| Shielding | Unshielded |
| Q @ Frequency | 50 @ 250MHz |
| Self Resonant Frequency | 920MHz |
| Inductance Test Frequency | 100 MHz |
| Mounting Type | Surface Mount |
| Supplier Device Package | 0805 |
| Height - Seated (Max) | 0.055" (1.40mm) |
