Description

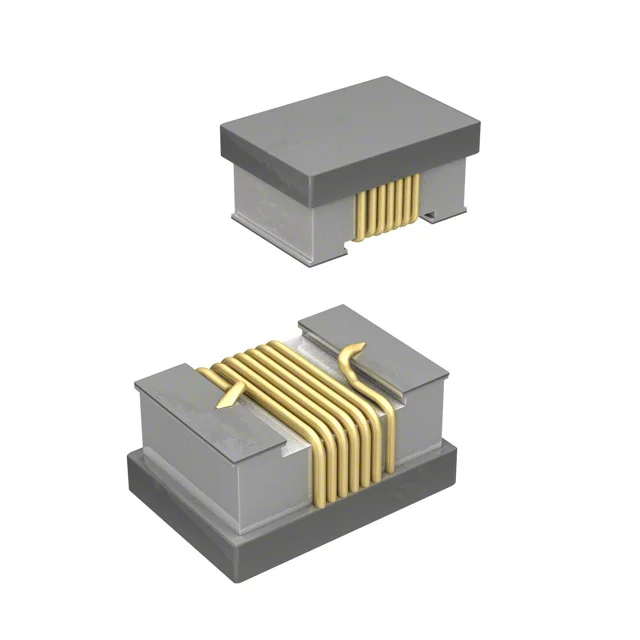

FIXED IND 750NH SURFACE MOUNT
Specifications
Inductance
750 nH
Dimensions
0.083" L x 0.059" W (2.10mm x 1.50mm)
Parameter Guide
Understand the key electrical and mechanical specifications for CW201212-R75J.
Inductance
750 nH
CW201212-R75J has an inductance value of 750 nH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
Package / Case
0805 (2012 Metric)
CW201212-R75J uses a package or case of 0805 (2012 Metric). Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from CW201212-R75J to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 750 nH |
| Tolerance | ±5% |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.083" L x 0.059" W (2.10mm x 1.50mm) |
| Case / Size | 0805 (2012 Metric) |
| Package / Case | 0805 (2012 Metric) |
| Supplier | Bourns Inc. |
| Description | FIXED IND 750NH SURFACE MOUNT |
| Series | CW201212 |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Unshielded |
| Inductance Test Frequency | 50 MHz |
| Mounting Type | Surface Mount |
| Supplier Device Package | 0805 (2012 Metric) |
| Height - Seated (Max) | 0.059" (1.50mm) |
