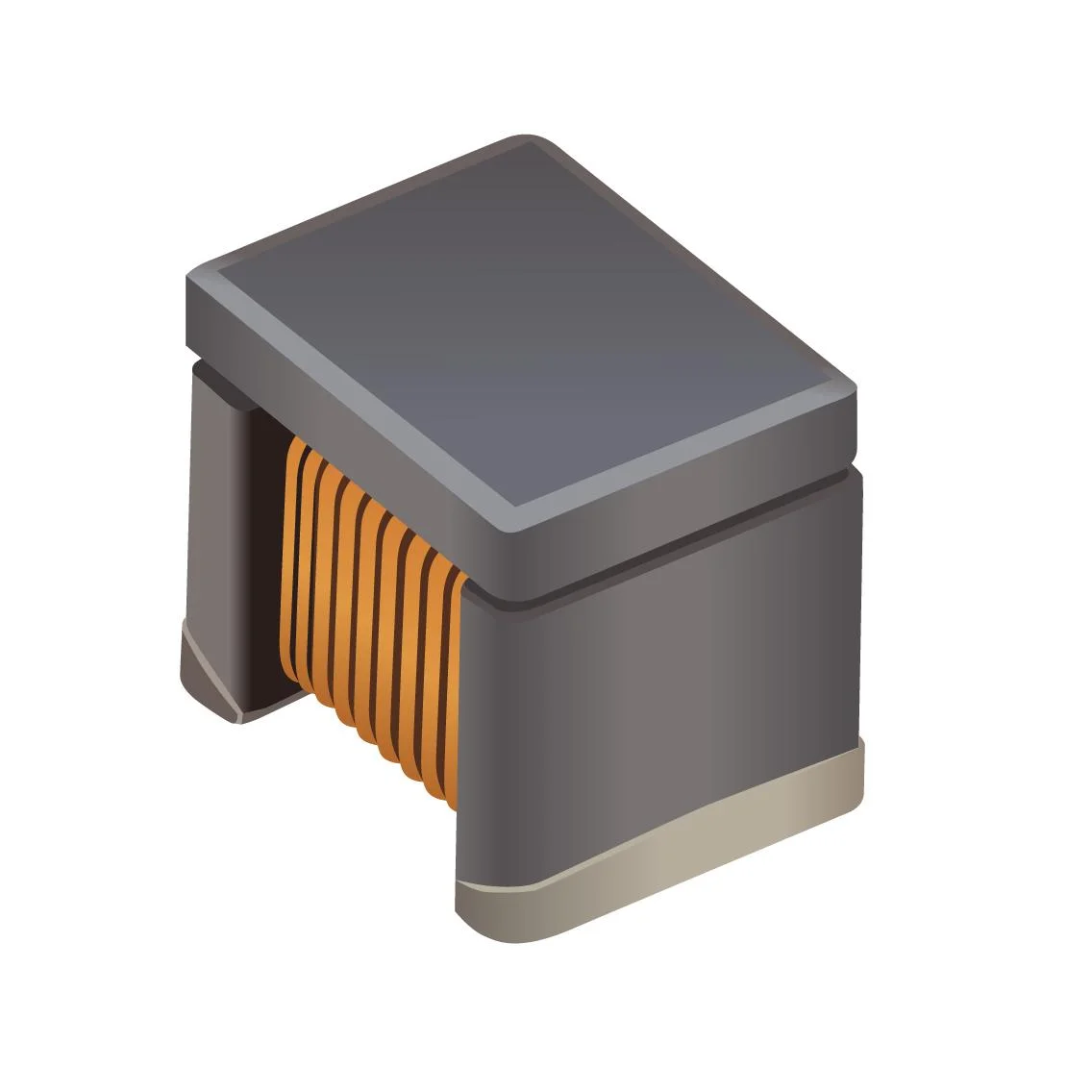

FIXED IND 10UH 570MA 340 MOHM
| Inductance | 10 µH |
| Tolerance | ±20% |
| Current Rating | 570 mA |
| DC Resistance (DCR) | 340mOhm Max |
| saturationCurrent | 560mA |
| Operating Temperature | -55°C ~ 150°C |
| Dimensions | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| Case / Size | 1210 (3225 Metric) |
| Supplier | Bourns Inc. |
| Description | FIXED IND 10UH 570MA 340 MOHM |
| Series | CWP3230A |
| productStatus | Active |
| typeConstruction | Wirewound |
| coreMaterial | Ferrite |
| shielding | Unshielded |
| qFactor | - |
| selfResonantFreq | 95MHz |
| ratings | AEC-Q200 |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | 1210 |
| heightMax | 0.126" (3.20mm) |
| features | - |
