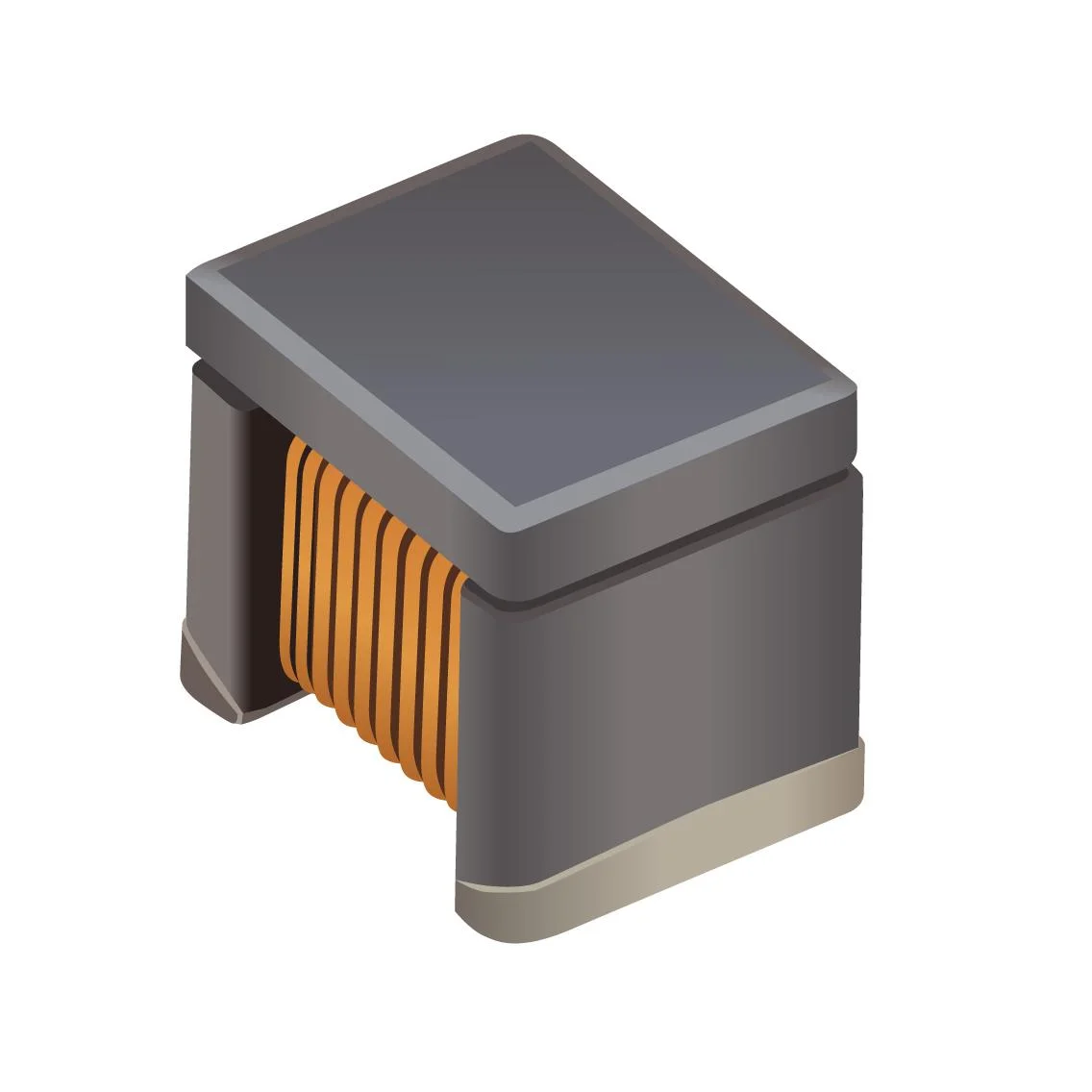

CWP3230A-6R8M
Bourns Inc.
- Inductance
- 6.8 µH
- Current
- 800 mA
- DCR
- 240mOhm Max
- Size
- 0.126" L x 0.098" W (3.20mm x 2.50mm)
Inductor Datasheets
Browse and download PDF datasheets for inductors from leading manufacturers.
Series: CWP3230A
Browse series tables and compare the available specifications.
CWP3230A
CWP3230A-220M
Bourns Inc.
- Inductance
- 22 µH
- Current
- 400 mA
- DCR
- 880mOhm Max
- Size
- 0.126" L x 0.098" W (3.20mm x 2.50mm)
CWP3230A-2R2M
Bourns Inc.
- Inductance
- 2.2 µH
- Current
- 1 A
- DCR
- 130mOhm Max
- Size
- 0.126" L x 0.098" W (3.20mm x 2.50mm)
CWP3230A-470M
Bourns Inc.
- Inductance
- 47 µH
- Current
- 100 mA
- DCR
- 1.2Ohm Max
- Size
- 0.126" L x 0.098" W (3.20mm x 2.50mm)
CWP3230A-100M
Bourns Inc.
- Inductance
- 10 µH
- Current
- 570 mA
- DCR
- 340mOhm Max
- Size
- 0.126" L x 0.098" W (3.20mm x 2.50mm)
| Product | Inductance | Current | DCR | Size | Package | Actions |
|---|---|---|---|---|---|---|
CWP3230A-6R8M Bourns Inc. | 6.8 µH | 800 mA | 240mOhm Max | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 1210 (3225 Metric) | |
CWP3230A-220M Bourns Inc. | 22 µH | 400 mA | 880mOhm Max | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 1210 (3225 Metric) | |
CWP3230A-2R2M Bourns Inc. | 2.2 µH | 1 A | 130mOhm Max | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 1210 (3225 Metric) | |
CWP3230A-470M Bourns Inc. | 47 µH | 100 mA | 1.2Ohm Max | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 1210 (3225 Metric) | |
CWP3230A-100M Bourns Inc. | 10 µH | 570 mA | 340mOhm Max | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 1210 (3225 Metric) |
