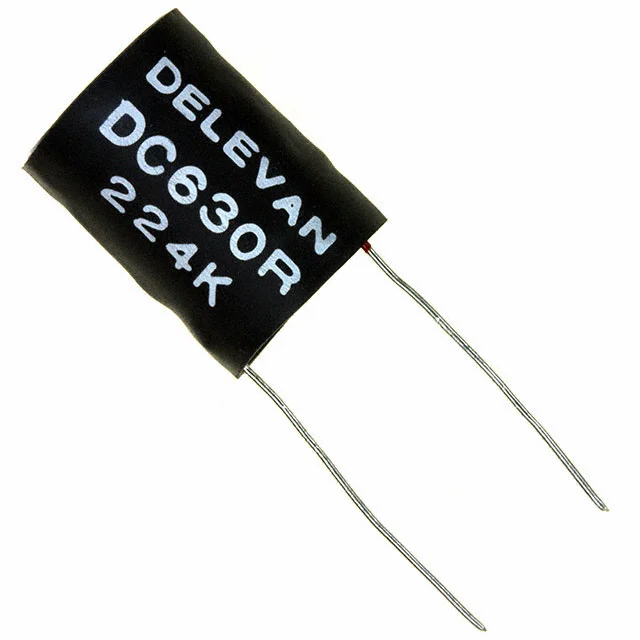

Description
FIXED IND 220UH 2.42A 168 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for DC630R-224K.
DC630R-224K has an inductance value of 220 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
DC630R-224K is rated for 2.42 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
DC630R-224K lists a DC resistance of 168mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
DC630R-224K uses a package or case of Radial, Vertical Cylinder. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from DC630R-224K to manufacturer, series, and broader datasheet collections.
Alternative Solutions
Compare possible alternatives with similar specifications. Verify every electrical and mechanical requirement before use.
Product Attributes
| Inductance | 220 µH |
| Tolerance | ±10% |
| Current Rating | 2.42 A |
| DC Resistance (DCR) | 168mOhm Max |
| Saturation Current | 4.6A |
| Operating Temperature | -55°C ~ 125°C |
| Dimensions | 0.630" Dia (16.00mm) |
| Case / Size | Radial, Vertical Cylinder |
| Package / Case | Radial, Vertical Cylinder |
| Supplier | Delevan |
| Description | FIXED IND 220UH 2.42A 168 MOHM |
| Series | DC630R |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Unshielded |
| Inductance Test Frequency | 10 kHz |
| Mounting Type | Through Hole |
| Height - Seated (Max) | 0.830" (21.08mm) |
