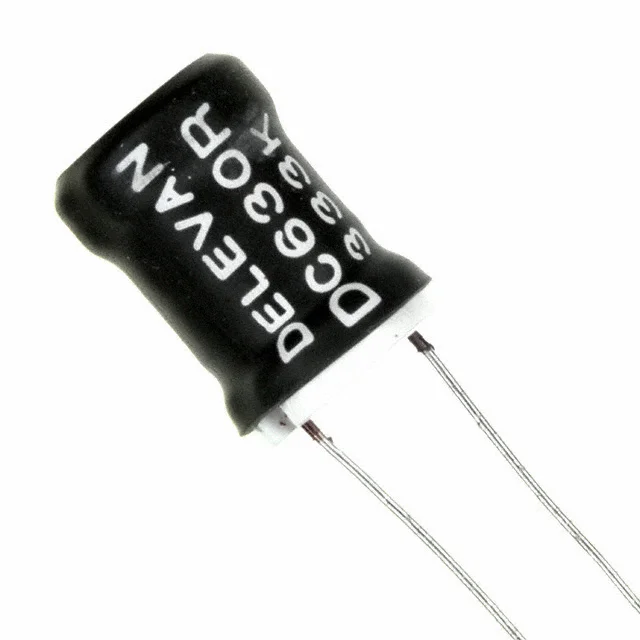

FIXED IND 33UH 4.95A 40 MOHM TH
| Inductance | 33 µH |
| Tolerance | ±10% |
| Current Rating | 4.95 A |
| DC Resistance (DCR) | 40mOhm Max |
| saturationCurrent | 11.9A |
| Operating Temperature | -55°C ~ 125°C |
| Dimensions | 0.630" Dia (16.00mm) |
| Case / Size | Radial, Vertical Cylinder |
| Supplier | Delevan |
| Description | FIXED IND 33UH 4.95A 40 MOHM TH |
| Series | DC630R |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Unshielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | 10 kHz |
| mountingType | Through Hole |
| supplierDevicePackage | - |
| heightMax | 0.830" (21.08mm) |
| features | https://www.digikey.com/en/products/detail/delevan/DC630R-333K/1553285 |
