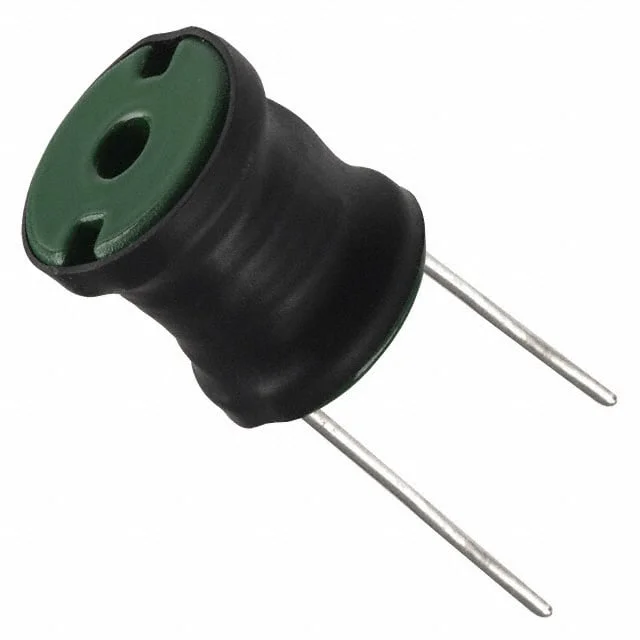

FIXED IND 56UH 5.5A 39 MOHM TH
| Inductance | 56 µH |
| Tolerance | ±10% |
| Current Rating | 5.5 A |
| DC Resistance (DCR) | 39mOhm Max |
| saturationCurrent | 14.6A |
| Operating Temperature | -55°C ~ 125°C |
| Dimensions | 0.772" Dia (19.60mm) |
| Case / Size | Radial, Vertical Cylinder |
| Supplier | Delevan |
| Description | FIXED IND 56UH 5.5A 39 MOHM TH |
| Series | DC780 |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Unshielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | 1 kHz |
| mountingType | Through Hole |
| supplierDevicePackage | - |
| heightMax | 0.831" (21.10mm) |
