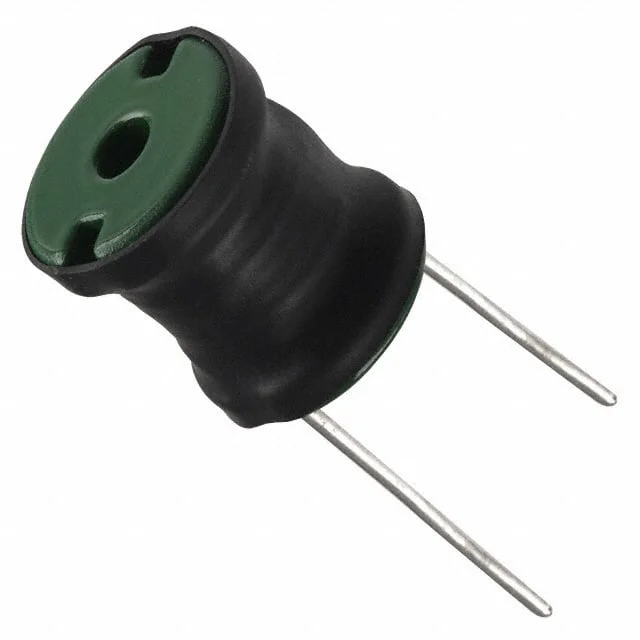

FIXED IND 8.2UH 11.4A 7 MOHM TH
| Inductance | 8.2 µH |
| Tolerance | ±15% |
| Current Rating | 11.4 A |
| DC Resistance (DCR) | 7mOhm Max |
| saturationCurrent | 38A |
| Operating Temperature | -55°C ~ 125°C |
| Dimensions | 0.772" Dia (19.60mm) |
| Case / Size | Radial, Vertical Cylinder |
| Supplier | Delevan |
| Description | FIXED IND 8.2UH 11.4A 7 MOHM TH |
| Series | DC780R |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Unshielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | 1 kHz |
| mountingType | Through Hole |
| supplierDevicePackage | - |
| heightMax | 0.831" (21.10mm) |
| features | - |
