Description

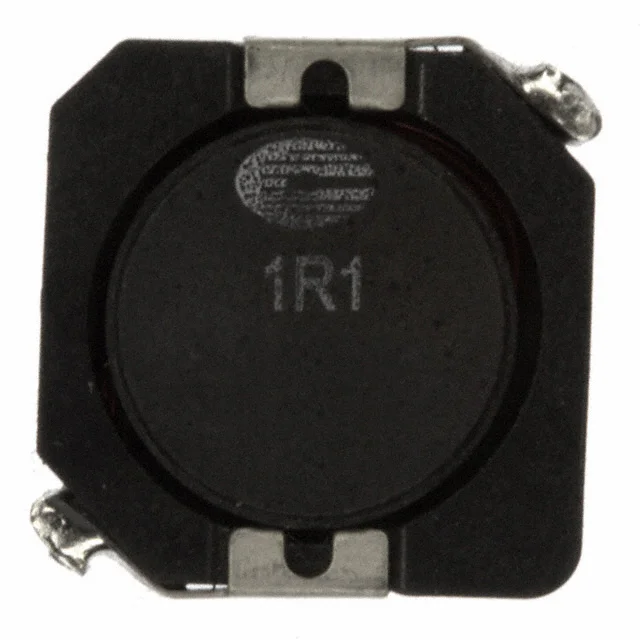

FIXED IND 2.8UH 5.1A 14.5 MOHM
Specifications
Inductance
2.8 µH
Current Rating
5.1 A
DC Resistance (DCR)
14.5mOhm Max
Dimensions
0.413" L x 0.406" W (10.50mm x 10.30mm)
Product Attributes
Manufacturer Verified
Last verified: 6/15/2026| Inductance | 2.8 µH |
| Tolerance | ±30% |
| Current Rating | 5.1 A |
| DC Resistance (DCR) | 14.5mOhm Max |
| saturationCurrent | 6.08A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.413" L x 0.406" W (10.50mm x 10.30mm) |
| Case / Size | Nonstandard |
| Supplier | Eaton - Electronics Division |
| Description | FIXED IND 2.8UH 5.1A 14.5 MOHM |
| Series | DR1030 |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Shielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.118" (3.00mm) |
| features | - |
