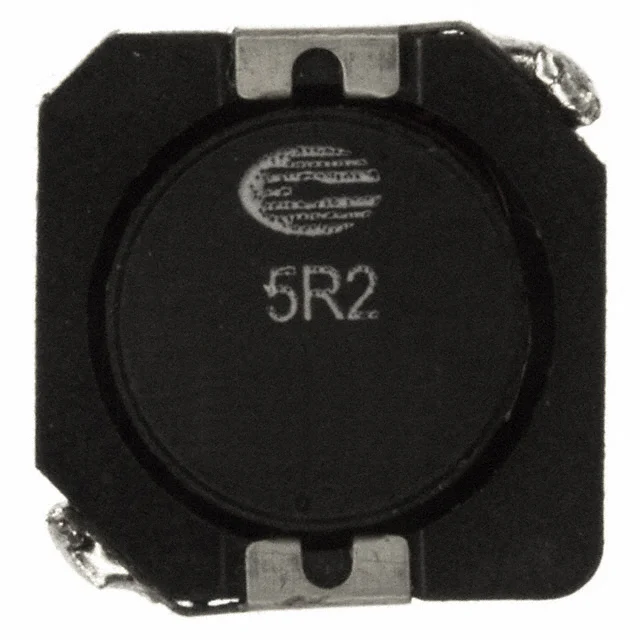

FIXED IND 5.2UH 3.7A 27.5 MOHM
| Inductance | 5.2 µH |
| Tolerance | ±30% |
| Current Rating | 3.7 A |
| DC Resistance (DCR) | 27.5mOhm Max |
| saturationCurrent | 4.75A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.413" L x 0.406" W (10.50mm x 10.30mm) |
| Case / Size | Nonstandard |
| Supplier | Eaton - Electronics Division |
| Description | FIXED IND 5.2UH 3.7A 27.5 MOHM |
| Series | DR1030 |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Shielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.118" (3.00mm) |
| features | - |
