Description

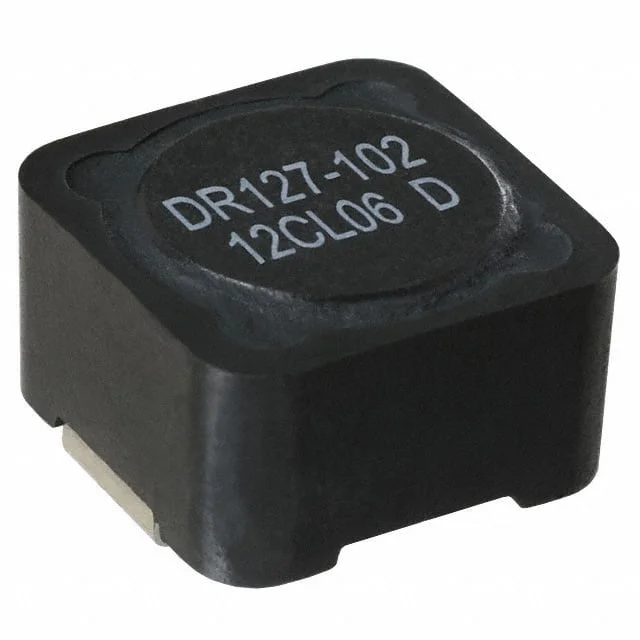

FIXED IND 1MH 610MA 1.66 OHM SMD
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for DR127-102-R.
DR127-102-R has an inductance value of 1 mH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
DR127-102-R is rated for 610 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
DR127-102-R lists a DC resistance of 1.66Ohm. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
DR127-102-R uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from DR127-102-R to manufacturer, series, and broader datasheet collections.
Alternative Solutions
Compare possible alternatives with similar specifications. Verify every electrical and mechanical requirement before use.
Product Attributes
| Inductance | 1 mH |
| Tolerance | ±20% |
| Current Rating | 610 mA |
| DC Resistance (DCR) | 1.66Ohm |
| Saturation Current | 1.14A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.492" L x 0.492" W (12.50mm x 12.50mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Eaton - Electronics Division |
| Description | FIXED IND 1MH 610MA 1.66 OHM SMD |
| Series | DR |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Shielded |
| Inductance Test Frequency | 100 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.315" (8.00mm) |
