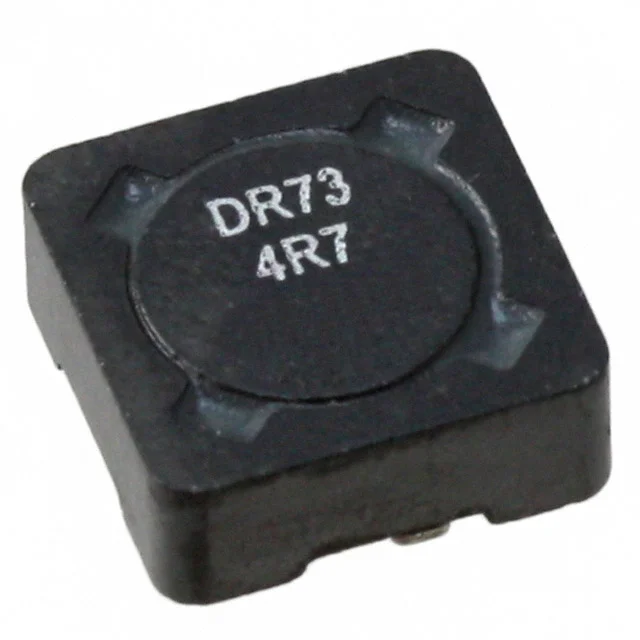

FIXED IND 4.7UH 3.09A 29.7 MOHM
| Inductance | 4.7 µH |
| Tolerance | ±20% |
| Current Rating | 3.09 A |
| DC Resistance (DCR) | 29.7mOhm |
| saturationCurrent | 3.78A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.299" L x 0.299" W (7.60mm x 7.60mm) |
| Case / Size | Nonstandard |
| Supplier | Eaton - Electronics Division |
| Description | FIXED IND 4.7UH 3.09A 29.7 MOHM |
| Series | DR |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Shielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.140" (3.55mm) |
| features | - |
