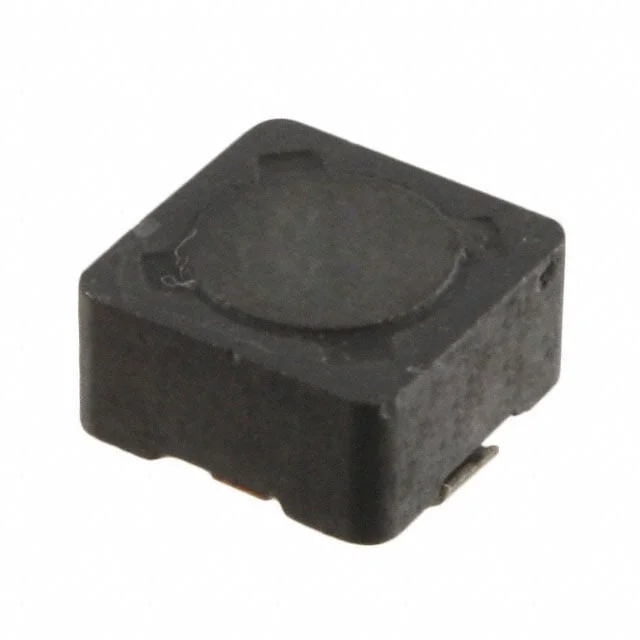

FIXED IND 470UH 400MA 1.74 OHM
| Inductance | 470 µH |
| Tolerance | ±20% |
| Current Rating | 400 mA |
| DC Resistance (DCR) | 1.74Ohm |
| saturationCurrent | 460mA |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.299" L x 0.299" W (7.60mm x 7.60mm) |
| Case / Size | Nonstandard |
| Supplier | Eaton - Electronics Division |
| Description | FIXED IND 470UH 400MA 1.74 OHM |
| Series | DR |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Shielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.171" (4.35mm) |
| features | - |
