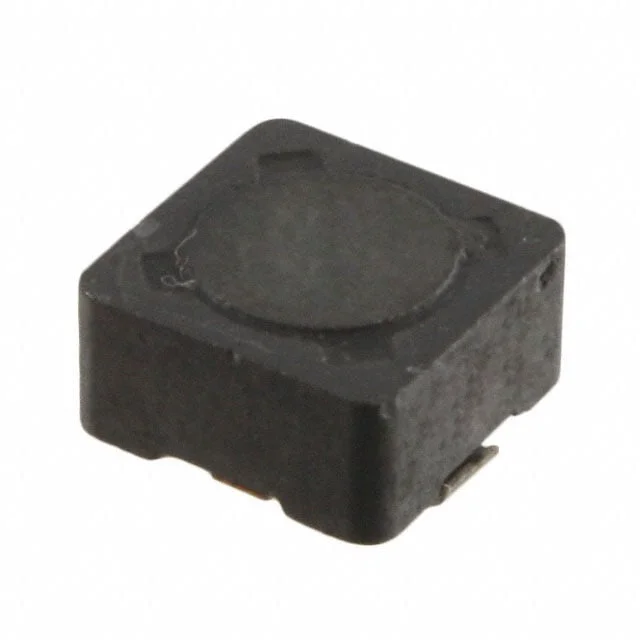

FIXED IND 330NH 6.26A 7.4 MOHM
| Inductance | 330 nH |
| Tolerance | ±20% |
| Current Rating | 6.26 A |
| DC Resistance (DCR) | 7.4mOhm |
| saturationCurrent | 18.4A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.299" L x 0.299" W (7.60mm x 7.60mm) |
| Case / Size | Nonstandard |
| Supplier | Eaton - Electronics Division |
| Description | FIXED IND 330NH 6.26A 7.4 MOHM |
| Series | DR |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Shielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.171" (4.35mm) |
| features | - |
