Description

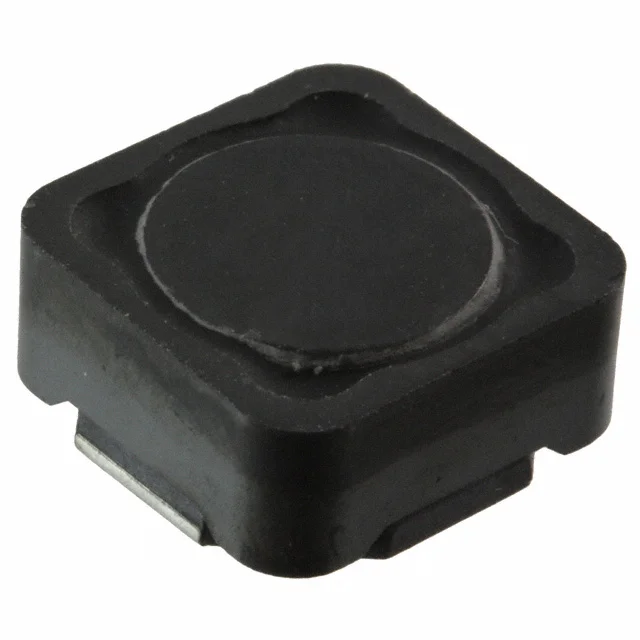

FIXED IND 1UH 15.94A 2.1 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for DRA125-1R0-R.
DRA125-1R0-R has an inductance value of 1 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
DRA125-1R0-R is rated for 15.94 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
DRA125-1R0-R lists a DC resistance of 2.1mOhm. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
DRA125-1R0-R uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from DRA125-1R0-R to manufacturer, series, and broader datasheet collections.
Alternative Solutions
Compare possible alternatives with similar specifications. Verify every electrical and mechanical requirement before use.
Product Attributes
| Inductance | 1 µH |
| Tolerance | ±20% |
| Current Rating | 15.94 A |
| DC Resistance (DCR) | 2.1mOhm |
| Saturation Current | 23.71A |
| Operating Temperature | -40°C ~ 165°C |
| Dimensions | 0.492" L x 0.492" W (12.50mm x 12.50mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | WEC,Eaton - Electronics Division |
| Description | FIXED IND 1UH 15.94A 2.1 MOHM |
| Series | DRA |
| Product Status | Active |
| Type / Construction | Wirewound |
| Shielding | Shielded |
| Ratings | AEC-Q200 |
| Inductance Test Frequency | 100 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.236" (6.00mm) |
