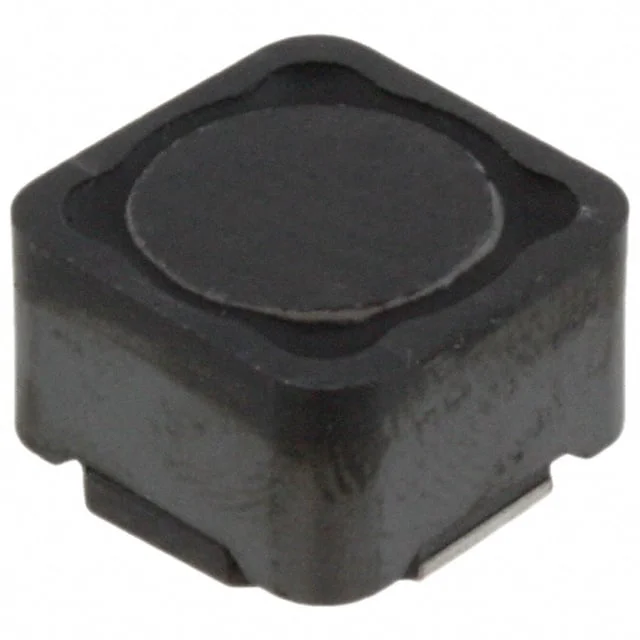

FIXED IND 22UH 3.98A 40 MOHM SMD
| Inductance | 22 µH |
| Tolerance | ±20% |
| Current Rating | 3.98 A |
| DC Resistance (DCR) | 40mOhm |
| saturationCurrent | 7.57A |
| Operating Temperature | -40°C ~ 165°C |
| Dimensions | 0.492" L x 0.492" W (12.50mm x 12.50mm) |
| Case / Size | Nonstandard |
| Supplier | Eaton - Electronics Division |
| Description | FIXED IND 22UH 3.98A 40 MOHM SMD |
| Series | DRA |
| productStatus | Active |
| typeConstruction | Wirewound |
| coreMaterial | - |
| shielding | Shielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | AEC-Q200 |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.315" (8.00mm) |
| features | - |
