Description

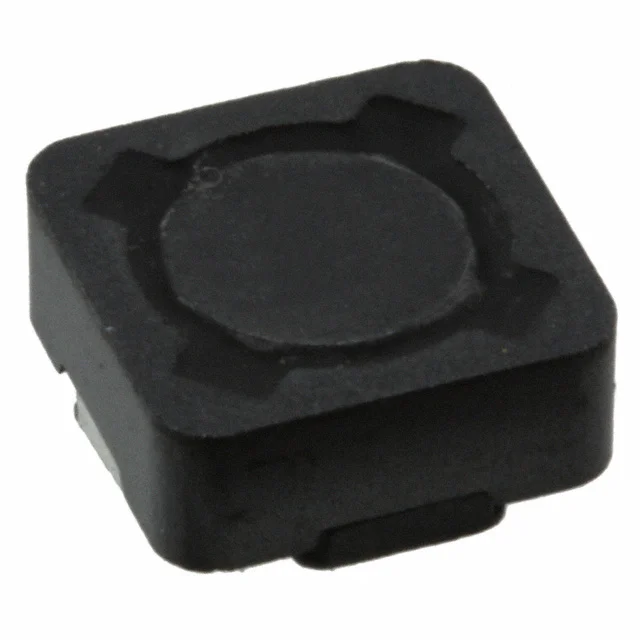

FIXED IND 330NH 8.42A 4 MOHM SMD
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for DRA73-R33-R.
DRA73-R33-R has an inductance value of 330 nH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
DRA73-R33-R is rated for 8.42 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
DRA73-R33-R lists a DC resistance of 4mOhm. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
DRA73-R33-R uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from DRA73-R33-R to manufacturer, series, and broader datasheet collections.
Alternative Solutions
Compare possible alternatives with similar specifications. Verify every electrical and mechanical requirement before use.
Product Attributes
| Inductance | 330 nH |
| Tolerance | ±20% |
| Current Rating | 8.42 A |
| DC Resistance (DCR) | 4mOhm |
| Saturation Current | 14.8A |
| Operating Temperature | -40°C ~ 165°C |
| Dimensions | 0.299" L x 0.299" W (7.60mm x 7.60mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Eaton - Electronics Division |
| Description | FIXED IND 330NH 8.42A 4 MOHM SMD |
| Series | DRA |
| Product Status | Active |
| Type / Construction | Wirewound |
| Shielding | Shielded |
| Ratings | AEC-Q200 |
| Inductance Test Frequency | 100 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.140" (3.55mm) |
