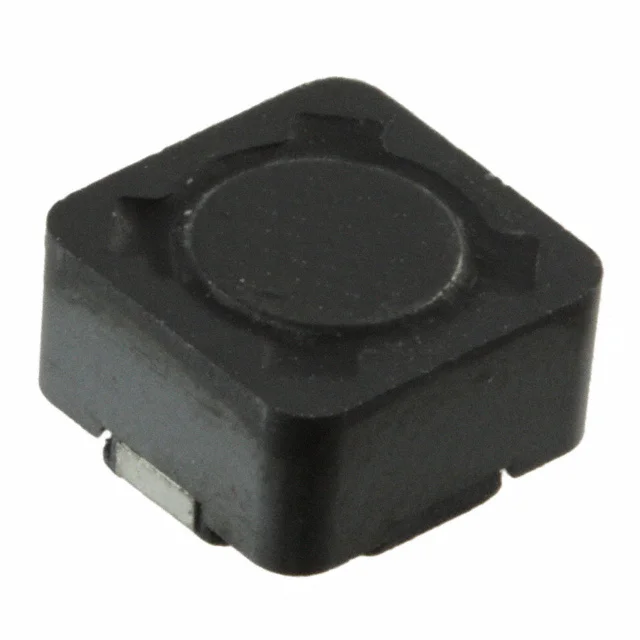

FIXED IND 680UH 315MA 2.86 OHM
| Inductance | 680 µH |
| Tolerance | ±20% |
| Current Rating | 315 mA |
| DC Resistance (DCR) | 2.86Ohm |
| saturationCurrent | 352mA |
| Operating Temperature | -40°C ~ 165°C |
| Dimensions | 0.299" L x 0.299" W (7.60mm x 7.60mm) |
| Case / Size | Nonstandard |
| Supplier | Eaton - Electronics Division,WEC |
| Description | FIXED IND 680UH 315MA 2.86 OHM |
| Series | DRA |
| productStatus | Active |
| typeConstruction | Wirewound |
| coreMaterial | - |
| shielding | Shielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | AEC-Q200 |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.171" (4.35mm) |
| features | - |
