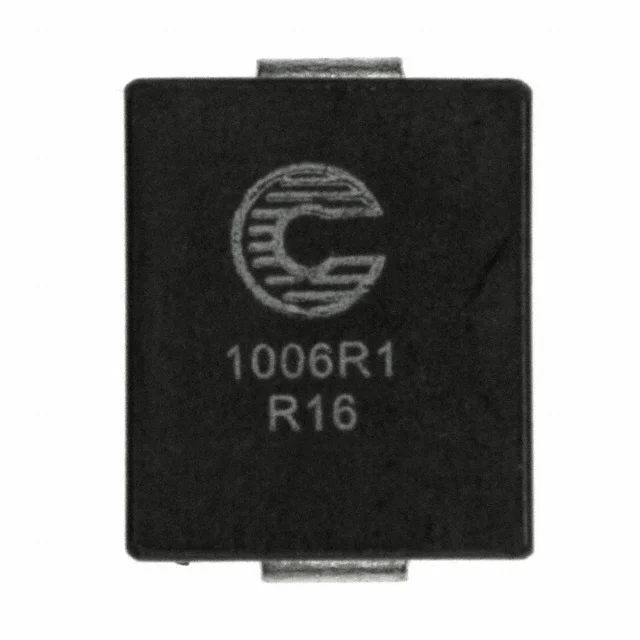

FIXED IND 160NH 53A 0.27 MOHM
| Inductance | 160 nH |
| Tolerance | ±10% |
| Current Rating | 53 A |
| DC Resistance (DCR) | 0.27mOhm |
| saturationCurrent | 55A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.402" L x 0.315" W (10.20mm x 8.00mm) |
| Case / Size | Nonstandard |
| Supplier | Eaton - Electronics Division |
| Description | FIXED IND 160NH 53A 0.27 MOHM |
| Series | FLAT-PAC, FP1006 |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Unshielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.236" (6.00mm) |
| features | - |
