Description

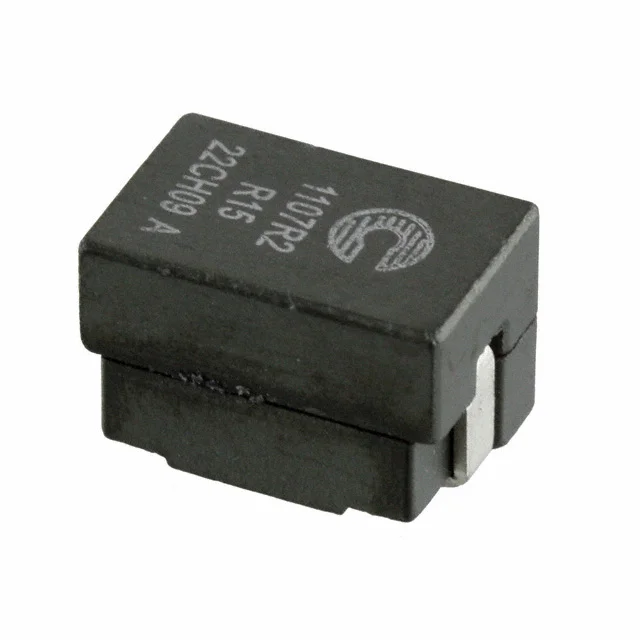

FIXED IND 150NH 42A 0.47 MOHM
Specifications
Inductance
150 nH
Current Rating
42 A
DC Resistance (DCR)
0.47mOhm
Dimensions
0.433" L x 0.283" W (11.00mm x 7.20mm)
Product Attributes
Manufacturer Verified
Last verified: 6/15/2026| Inductance | 150 nH |
| Tolerance | ±10% |
| Current Rating | 42 A |
| DC Resistance (DCR) | 0.47mOhm |
| saturationCurrent | 70A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.433" L x 0.283" W (11.00mm x 7.20mm) |
| Case / Size | Nonstandard |
| Supplier | Eaton - Electronics Division |
| Description | FIXED IND 150NH 42A 0.47 MOHM |
| Series | FLAT-PAC, FP1107 |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Unshielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.283" (7.20mm) |
| features | - |
