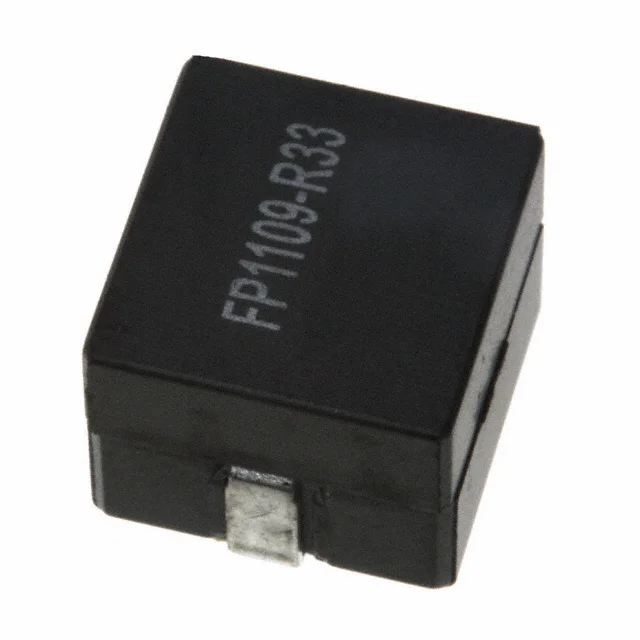

FIXED IND 311NH 35A 0.42 MOHM
| Inductance | 311 nH |
| Tolerance | ±10% |
| Current Rating | 35 A |
| DC Resistance (DCR) | 0.42mOhm |
| saturationCurrent | 44A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.441" L x 0.441" W (11.20mm x 11.20mm) |
| Case / Size | Nonstandard |
| Supplier | WEC,Eaton - Electronics Division |
| Description | FIXED IND 311NH 35A 0.42 MOHM |
| Series | FLAT-PAC, FP1109 |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Unshielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.354" (9.00mm) |
| features | - |
