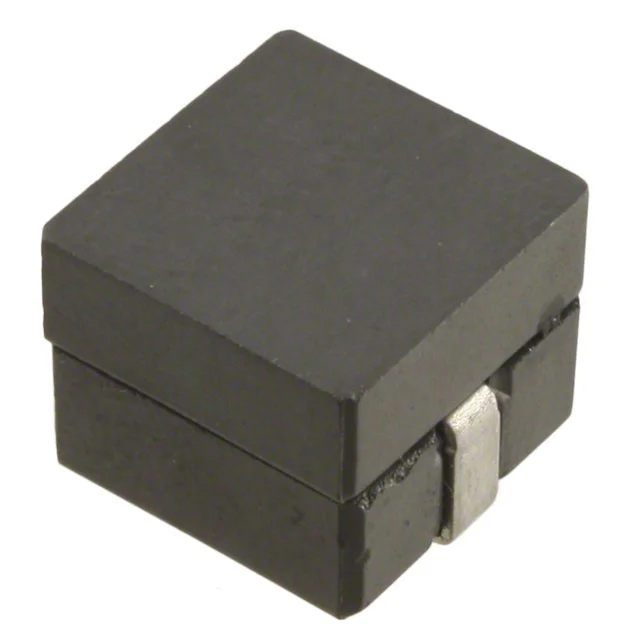

FIXED IND 220NH 55A 0.19 MOHM
| Inductance | 220 nH |
| Tolerance | ±10% |
| Current Rating | 55 A |
| DC Resistance (DCR) | 0.19mOhm |
| saturationCurrent | 40A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.433" L x 0.323" W (11.00mm x 8.20mm) |
| Case / Size | Nonstandard |
| Supplier | WEC,Eaton - Electronics Division |
| Description | FIXED IND 220NH 55A 0.19 MOHM |
| Series | FP1109 |
| productStatus | Active |
| typeConstruction | - |
| coreMaterial | Ferrite |
| shielding | Unshielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.354" (9.00mm) |
| features | - |
