Description

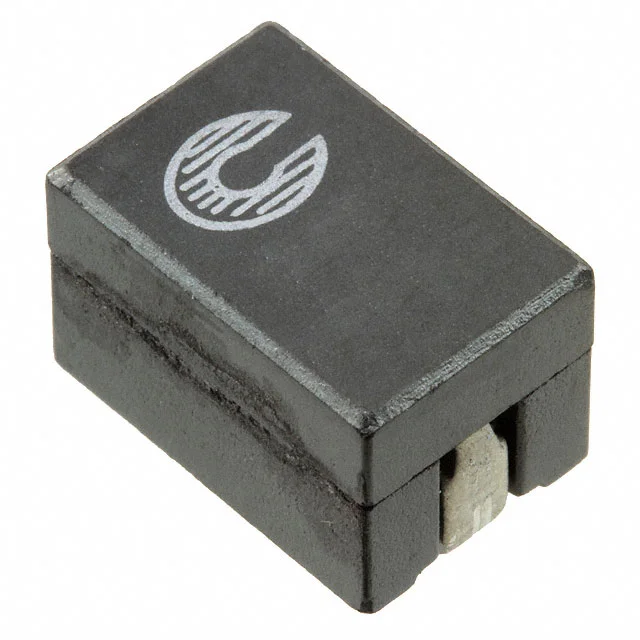

FIXED IND 250NH 50A 0.29 MOHM
Specifications
Inductance
250 nH
Current Rating
50 A
DC Resistance (DCR)
0.29mOhm
Dimensions
0.476" L x 0.315" W (12.10mm x 8.00mm)
Product Attributes
Manufacturer Verified
Last verified: 6/15/2026| Inductance | 250 nH |
| Tolerance | ±10% |
| Current Rating | 50 A |
| DC Resistance (DCR) | 0.29mOhm |
| saturationCurrent | 55A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.476" L x 0.315" W (12.10mm x 8.00mm) |
| Case / Size | Nonstandard |
| Supplier | Eaton - Electronics Division |
| Description | FIXED IND 250NH 50A 0.29 MOHM |
| Series | FLAT-PAC, FP1208 |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Unshielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.315" (8.00mm) |
| features | - |
