Description

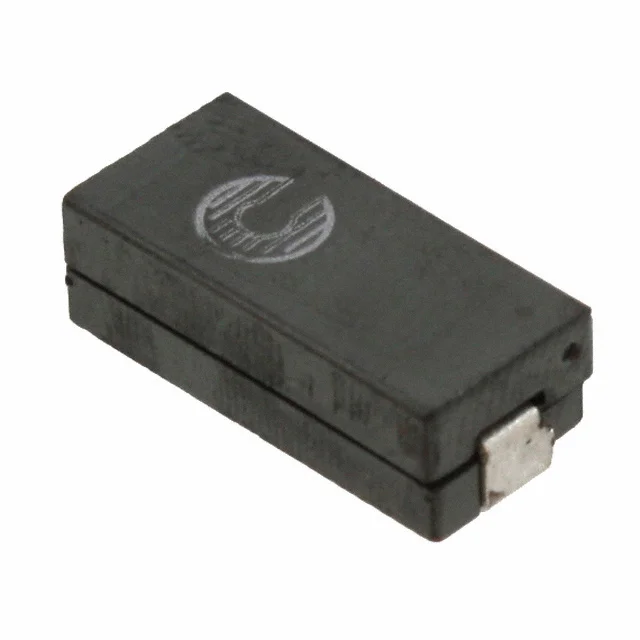

FIXED IND 150NH 53A 0.47 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for FP1505R1-R15-R.
FP1505R1-R15-R has an inductance value of 150 nH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
FP1505R1-R15-R is rated for 53 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
FP1505R1-R15-R lists a DC resistance of 0.47mOhm. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
FP1505R1-R15-R uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from FP1505R1-R15-R to manufacturer, series, and broader datasheet collections.
Alternative Solutions
Compare possible alternatives with similar specifications. Verify every electrical and mechanical requirement before use.
Product Attributes
| Inductance | 150 nH |
| Tolerance | ±10% |
| Current Rating | 53 A |
| DC Resistance (DCR) | 0.47mOhm |
| Saturation Current | 72A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.579" L x 0.264" W (14.70mm x 6.70mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | WEC,Eaton - Electronics Division |
| Description | FIXED IND 150NH 53A 0.47 MOHM |
| Series | FLAT-PAC, FP1505 |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Unshielded |
| Inductance Test Frequency | 100 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.197" (5.00mm) |
