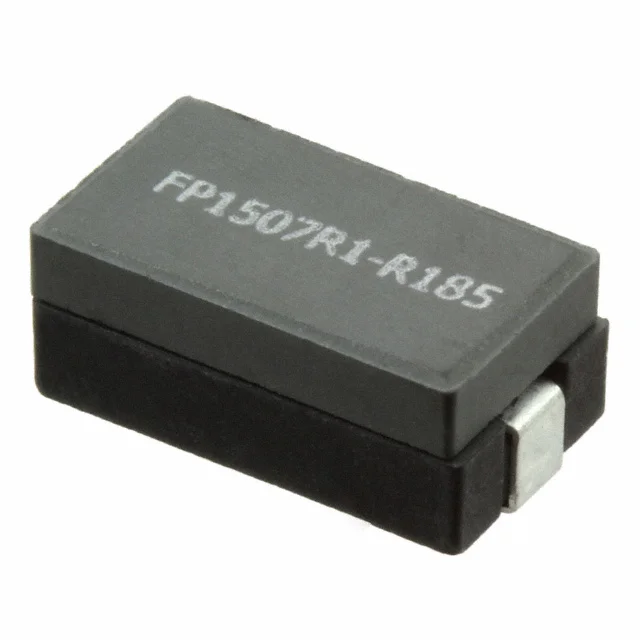

FIXED IND 185NH 45A 0.52 MOHM
| Inductance | 185 nH |
| Tolerance | ±10% |
| Current Rating | 45 A |
| DC Resistance (DCR) | 0.52mOhm |
| saturationCurrent | 40A |
| Operating Temperature | -55°C ~ 125°C |
| Dimensions | 0.575" L x 0.335" W (14.60mm x 8.50mm) |
| Case / Size | Nonstandard |
| Supplier | Eaton - Electronics Division |
| Description | FIXED IND 185NH 45A 0.52 MOHM |
| Series | FP1507R |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Shielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | 1 MHz |
| mountingType | Surface Mount |
| supplierDevicePackage | 2-SMD |
| heightMax | 0.264" (6.70mm) |
| features | - |
