Description

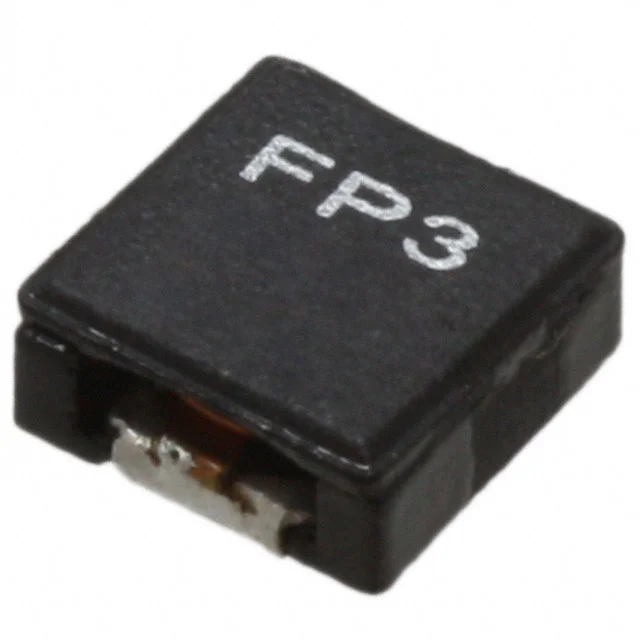

FIXED IND 10UH 2.3A 101 MOHM SMD
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for FP3-100-R.
FP3-100-R has an inductance value of 10 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
FP3-100-R is rated for 2.3 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
FP3-100-R lists a DC resistance of 101mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
FP3-100-R uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from FP3-100-R to manufacturer, series, and broader datasheet collections.
Alternative Solutions
Compare possible alternatives with similar specifications. Verify every electrical and mechanical requirement before use.
Product Attributes
| Inductance | 10 µH |
| Tolerance | ±15% |
| Current Rating | 2.3 A |
| DC Resistance (DCR) | 101mOhm Max |
| Saturation Current | 3A |
| Operating Temperature | -40°C ~ 155°C |
| Dimensions | 0.285" L x 0.264" W (7.25mm x 6.70mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Eaton - Electronics Division |
| Description | FIXED IND 10UH 2.3A 101 MOHM SMD |
| Series | FLAT-PAC 3 |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Iron Powder |
| Shielding | Shielded |
| Inductance Test Frequency | 100 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.118" (3.00mm) |
