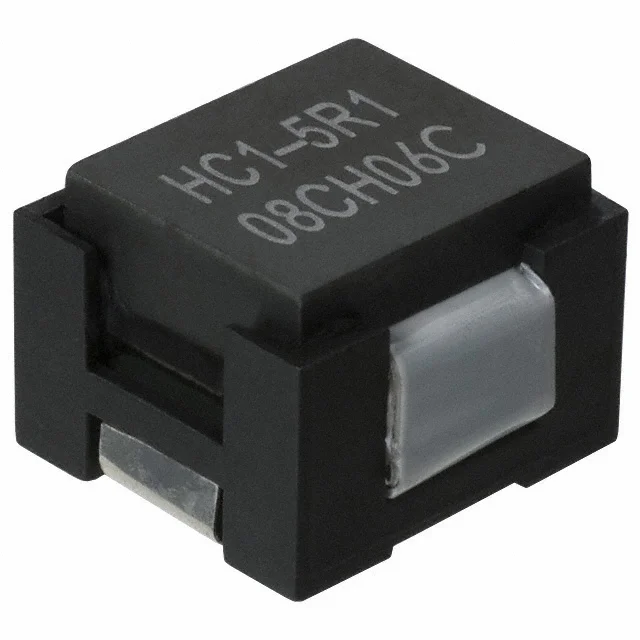

FIXED IND 5.1UH 12.79A 5.7 MOHM
| Inductance | 5.1 µH |
| Tolerance | ±15% |
| Current Rating | 12.79 A |
| DC Resistance (DCR) | 5.7mOhm Max |
| saturationCurrent | 11.2A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.512" L x 0.512" W (13.00mm x 13.00mm) |
| Case / Size | Nonstandard |
| Supplier | Eaton - Electronics Division |
| Description | FIXED IND 5.1UH 12.79A 5.7 MOHM |
| Series | HC1 |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Unshielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | 300 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.394" (10.00mm) |
| features | - |
